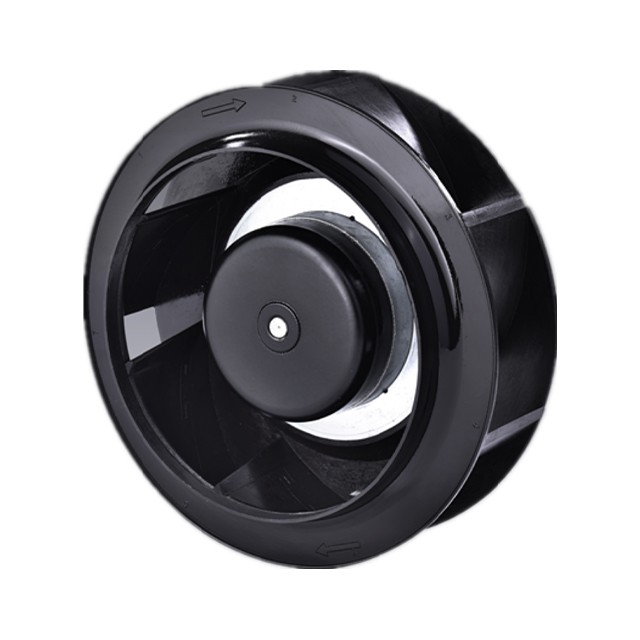

ZC-6E220-PLHDAJ1 EC Backward Curved Centrifugal Fan For Refrigeration

$9,999.00
Quantity

Description

Size:
220mm
Voltage:
230V
Speed(RPM):
3350
Max airflow (m³/h ):
1200

Belmont EC backward curved centrifugal fans deliver maximum efficiency and intelligent control in high-performance airflow systems. With a quiet and compact design, they're ideal for modern HVAC and AHU applications where reliability and control matter most.

Typical Applications: Air handling units, heat recovery ventilation, clean rooms, electronics cooling, data centers.

Key Advantages:

✔ High-efficiency EC motor with full speed modulation.

✔ The impeller design adopts a hollow airfoil structure, with high efficiency and low operating noise.

✔ 0~10VDC/PWM control signal or MODBUS stepless speed control.

Custom Options:

✔ Backward curved impeller shape & size.

✔ IP grade, motor position, air volume tuning.

✔ Control signal customization for OEM.

✔ All nameplates, customer logos, cable lengths, and parameters can be customized.

Motor technology EC
Supply voltage 1P, 200~277V
Supply frequency 50/60 Hz
Rated voltage 230 VAC
Power input 180 W
Current 1.3 A
Speed 3350 r/min
Perm. amb. temp -25℃ ~ +50℃
Inlet type Single Inlet
Rotation Counter-clockwise (Seen from cable exit)
Protection class IP54
Insulation class F
Impeller material Plastic
Acoustic 68 dB(A)
Controller Integrated (Cable line), 0~10V PWM
Housing Without housing; With inlet ring;
