Description

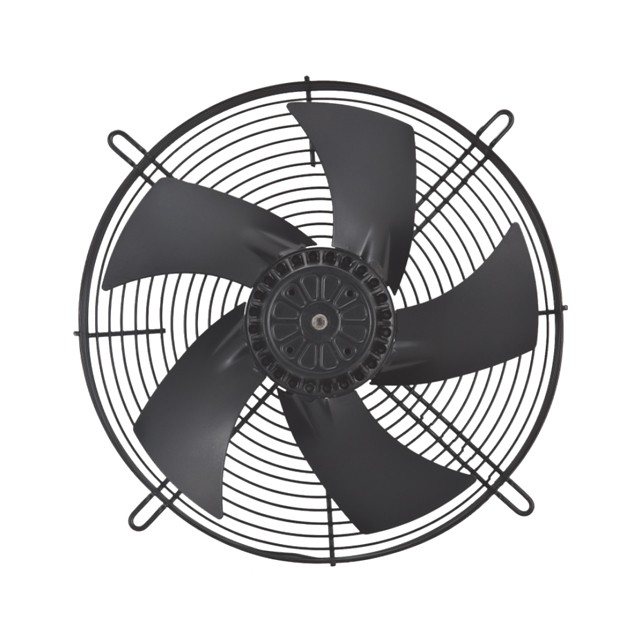

Belmont AC axial fans are engineered for high-volume airflow in ventilation and cooling applications where simplicity, durability, and cost-efficiency are key. These fans are driven by high-quality ac motors, providing reliable performance in a wide range of operating conditions.
Typical Applications: HVAC units, refrigeration equipment, industrial ventilation, condensers, cooling towers.
Key Advantages:
✔ Strong airflow with consistent performance
✔ Rugged aluminum, plastic or steel construction
✔ Cost-effective solution for general ventilation
Custom Options:
✔ Frame size, mounting Panel, grille
✔ AC voltage/frequency options (50Hz/60Hz)
✔ Coating for corrosion resistance
✔ All nameplates, customer logos, cable lengths, and parameters can be customized.
| Motor technology | AC |
| Supply voltage | 3P |
| Supply frequency | 50 Hz |
| Rated voltage | 380 VAC |
| Power input | 250 W |
| Current | 0.45 A |
| Speed | 2500 r/min |
| Perm. amb. temp | -25℃ ~ +65℃ |
| Blades count | 5 |
| Direction | Blow (Seen from cable exit) |
| Protection class | IP54 |
| Insulation class | F |
| Impeller material | Cold rolled sheet steel |
| Acoustic | 72 dB(A) |
| Thermal Protector | Can be configured as requirements |
| Attachment | High Concave Guard Grille |
