Description
-
Estimated Lead Time : Usually ships in 1 - 10 working days.
-
Manufacturer :Yokogawa
-
Product No. : YTA710-JA1A2DN/KU2/X2/C3/SG
-

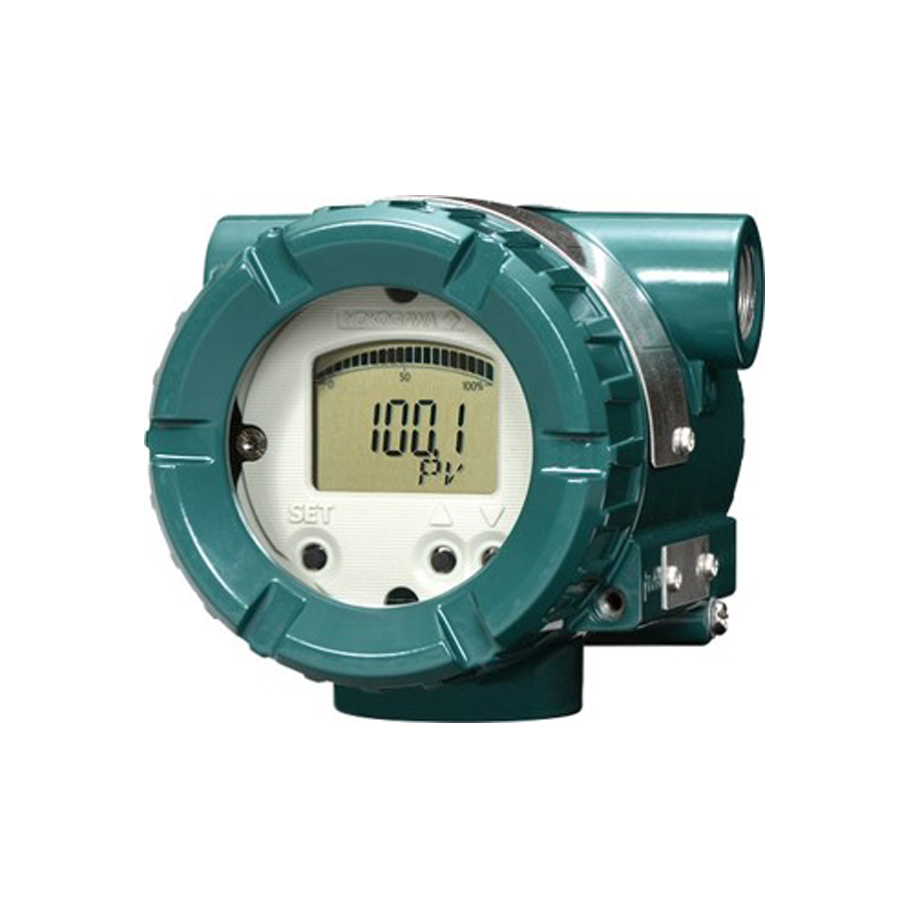

Product Type : YTA710 Temperature Transmitter
-
Output signal : J = 4 to 20 mA DC with digital communication HART protocol
-
A = Always A (Global)
-
Sensor input : 1 = Single
-
Housing code : A = Aluminum
-
Electrical connection : 2 = 1/2 NPT female
-
Integral indicator : D = Digital indicator with Local Operating Switch
-
Mounting bracket : N = None
-
ATEX : KU2 = 4-20mA: [Intrinsically safe ia approval] Applicable Standard: EN 60079-0:2012+A11:2013, EN 60079-11:2012 Certificate No. FM16ATEX0019X II 1 G Ex ia IIC T5…T4 Ga II 2 (1) D Ex ia [ia Da] IIIC T135°C Db Ambient Temperature: –40 to +70°C for T4, –40 to +50°C for T5, –30 to +70°C for IIIC Enclosure: IP66/IP67 Electrical parameters: Supply/Output circuit: Terminals: +, – Ui=30V, Ii=200mA, Pi=1.0W, Ci=22nF, Li=0mH Sensor circuit: Terminals: 1, 2, 3, 4, 5 Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH Dielectric strength: 500 V a.c.r.m.s.,1 min (Without /A) [Intrinsically safe ic] Applicable Standard: EN 60079-0:2012+A11:2013, EN 60079-11:2012 Certificate: Not Applicable as per Annex VIII to ATEX 2014/34/EU II 3 G Ex ic IIC T5...T4 Gc Ambient Temperature: –30 to +70°C for T4, –30 to +50°C for T5 Enclosure: IP66/IP67 Overvoltage category: I Electrical parameters: Supply/Output circuit: Terminals: +, – Ui=30V, Ci=2.2nF, Li=0mH Sensor circuit: Terminals: 1, 2, 3, 4, 5 Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH Dielectric strength: 500 V a.c.r.m.s.,1 min (Without /A) [Flameproof and Dust Ignition Proof Approval] Same as KF2
-
Painting : X2 = Coating change, High anti-corrosion coating
-
NAMUR NE43 compliant : C3 = Failure alarm up-scale: output status at CPU failure and hardware error is 110%, 21.6 mA or more. In this case Sensor burnout is High: 110%, 21.6 mA DC.
-
Manufacturing : SG = Optional code to specify the manufacturing factory
-
Weight : 1.5 Kg
-
Shipping Weight : 8 Kg
