Description
Estimated Lead Time : 1 - 10 working days.
Manufacturer : Siemens Echomax
Product No. : 7ML1106-1AA20-0A

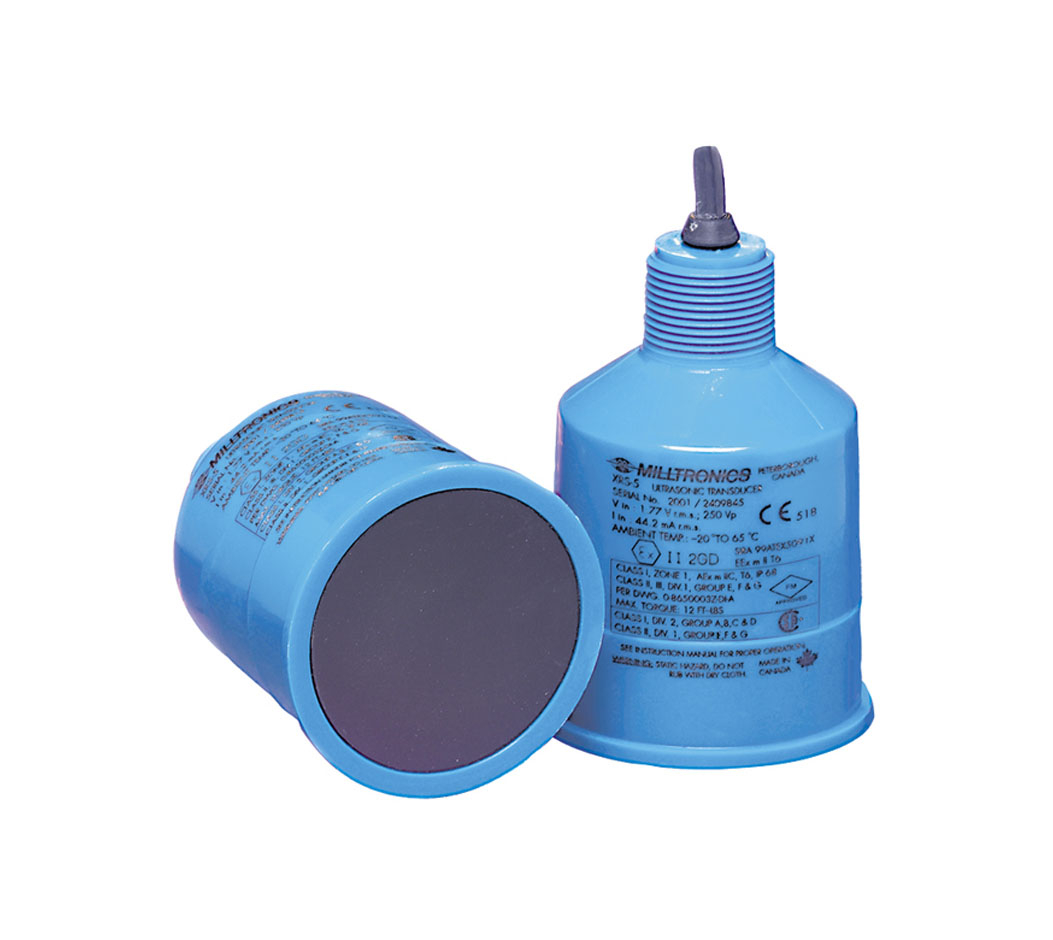

Product type : EchoMax XRS-5 Transducer
7ML1106 : With a beam angle of 10°, the XRS-5 provides reliable, continuous level monitoring of liquids and slurries in narrow lift stations/wet wells, flumes, weirs and filter beds. Measuring range: min. 0.3 m (1 ft), max. 8 m (26 ft).
Process connection : 1 = 1" NPT [(Taper), ANSI/ASME B1.20.1]
Cable length : A = 5 m (16.40 ft)
Facing : A = Standard (CSM rubber)
Approvals : 2 = CE, RCM, KCC, CSA Class I, Div. 2, Groups A,B,C,D, Class II, Div. 1 Groups E,F,G FM Class I, Zone 1, AEx m IIC, T6 Class II, III, Div. 1, Groups E,F,G T6 ATEX II 2GD / IECEx / INMETRO Ex mb IIC T6 Gb, Ex tb IIIC T85 °C Db
Measuring principle : Ultrasonic transducer
Input Measuring range : 0.3 ... 8 m (1 ... 26 ft), dependent on application
Output Frequency : 44 kHz
Temperature error : Compensated by integral temperature sensor
Ambient temperature : -20 ... +65 °C (-4 ... +149 ° F)
