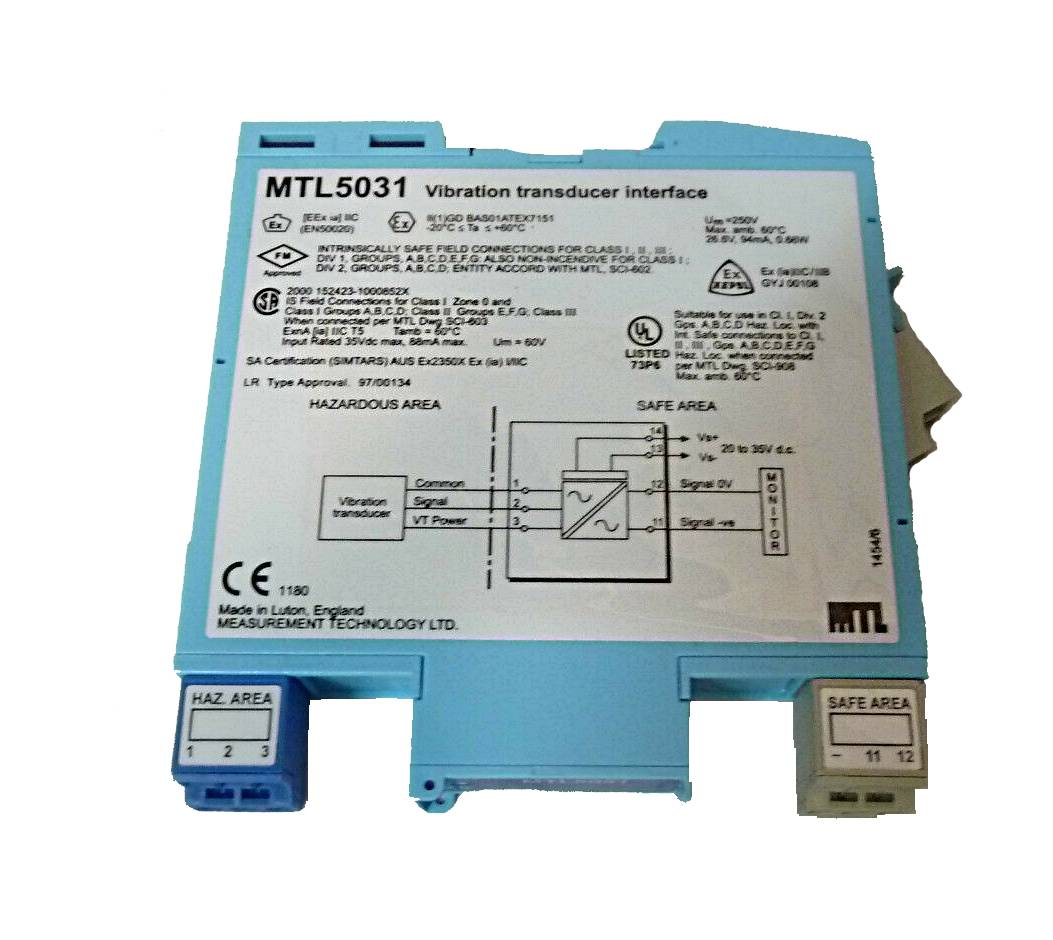

Vibration Transducer Interface(MTL5031),mtl instruments

$447.30
$571.00
-$123.70
Quantity
Sku : MTL5031
Weight : 0.03kg

Description

  • Estimated Lead Time : Usually ships in 1-10 working days.

  • Manufacturer : MTL Instruments

  • Product No. : MTL5031

  • Product Type : Vibration Transducer Interface

  • Number of channel : 1

  • Location of signal source : Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location

  • Safe-area output : Output impedance, (terminals 11 and 12): <20O

  • Hazardous-area input : Input impedance, (terminals 1 and 2): 10kO –1%, +2%

  • Signal range (terminals 1 and 2, 11 and 12) : Minimum –20V, maximum –0.5V, for dc transfer error <±100mV

  • DC transfer accuracy at 20°C : <±100mV

  • AC transfer accuracy at 20°C : 0Hz to 1kHz: ±1%, 1kHz to 10kHz: –5% to +1%, 10kHz to 20kHz: –10% to +1%

  • Temperature coefficient : ±50ppm/°C (10 to 65°C), ±100ppm/°C (–20 to 10°C)

  • Voltage bandwidth : –3dB at 43kHz (typical)

  • Supply voltage : 20 to 35V dc

  • Maximum current consumption (with 22mA transducer load) : 80mA at 24V, 88mA at 20V, 63mA at 35V

  • Maximum power dissipation within unit : <1.7W

  • Weight : 0.03 Kg

  • Shipping Weight : 1 Kg
