Description
- Estimated Lead Time : Usually ships in 1 - 10 working days.
- Manufacturer : Yokogawa

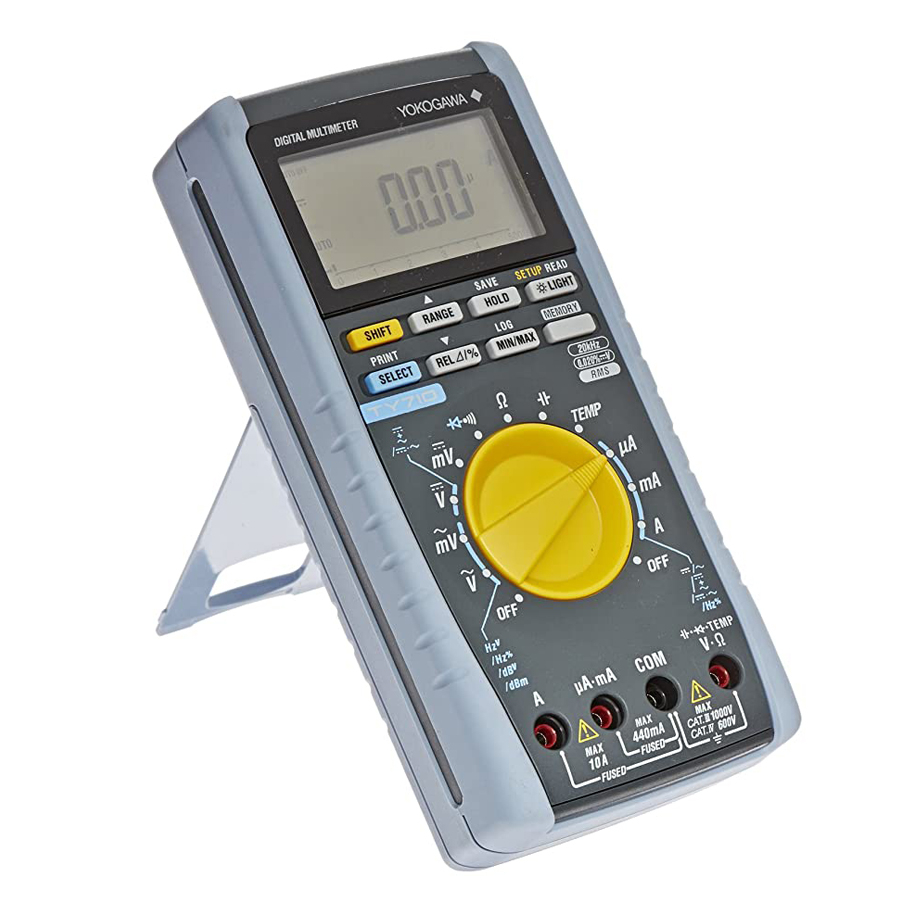

- Product No. : TY710
- Product type : TY700 Handheld Digital Multimeters
- Measurement Functions : DC voltage, AC voltage, DCV+ACV, DC current, AC current, DCA+ACA, resistance, frequency, temperature, capacitance, duty cycle, decibel calculation, continuity check, diode test, low-power resistance (TY720 only) For AC voltage/current, RMS/MEAN detection can be switched (TY720 only). For AC voltage/current, the low-pass filter can be turned on/off (TY720 only)
- Additional Functions : Data hold/auto hold/peak hold (TY720 only), range hold, maximum/minimum/average values resistance, capacitance zero, relative and percentage value calculation, manual-mode memory, logging-mode memory, auto power off, backlight (white LED)
- Display :
- 5-digit LCD: 7-segment
- Digital display: Main display; [50,000] counts Sub-display ; [50,000] counts
- Bar graph display: 51-segment
- Polarity indicator: “-” appears automatically when the polarity is negative
- Overrange indicator: “OL”
- Low-battery indicator: “ ” appears at or below the minimum operating voltage
- Measuring Rate :6 times/sec (Frequency: 1 time/sec, Capacitance: max. 0.03 times/sec (50mF), Resistance: 4 times/sec) Bar graph display: 15 times/sec
- Battery Life : Approx. 300 hours (for continuous DC voltage measurement with alkaline cells)
- Power Supply :Four AA (R6) dry cells
- Battery Life :Approx. 120 hours (for continuous DC voltage measurement with alkaline cells)
- Withstanding Voltage : 6.88kV for 5 seconds (between input terminals and casing)
- Dimensions : Approx. 9(W) x 19.2(H) x 4.9(D) cm
- Weight : 0.56 Kg
- Shipping weight : 1.5 Kg
