Description
Estimated Lead Time : 4 - 6 weeks.
Manufacturer : ABB
Product No : TTH300-E1-H-BF-M5-B87-C01-B14-B81-B01-B65-B90

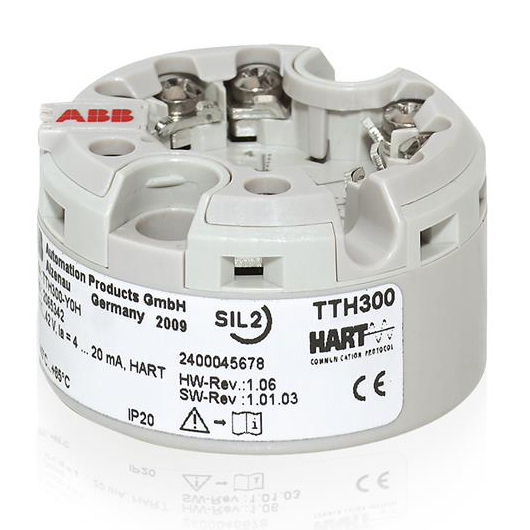

Product type : TTH300 Head Mounted Temperature Transmitter
TTH300 : TTH300 Head Mounted Temperature Transmitter, Pt100 (RTD), thermocouples, electrical isolation
Explosion Protection : E1 = ATEX Intrinsic Safety type of protection: Zone 0: II 1 G Ex ia IIC T6 Ga, Zone 1 (0): II 2 (1) G Ex [ia IIC Ga] ib IIC T6 Gb, Zone 1 (20): II 2 G (1D) Ex [ia IIIC Da] ib IIC T6 Gb
Communication Protocol : H = HART
Configuration : BF = Customer-specific configuration with report, except user curve
Documentation Language : M5 = English
Number of Sensors : B87 = Two sensors
Sensor Type : C01 = Resistance thermometer (RTD) (standard)
Sensor : B14 = RTD Pt100 (standard)
Sensor Connection Type : B81 = 3-wire connection (standard)
Standard : B01 = DIN IEC 60751 (a = 0.003850) (standard)
Unit of Measure : B65 = Celsius (standard)
Software Write Protection : B90 = Off (standard)
Material : Housing: polycarbonate, gray color RAL9002, polyurethane (PUR), WEVO PU-417 Encapsulation resin
Electrical isolation : 3.5 kV DC (approx. 2.5 kV AC), 60 s, input to output
