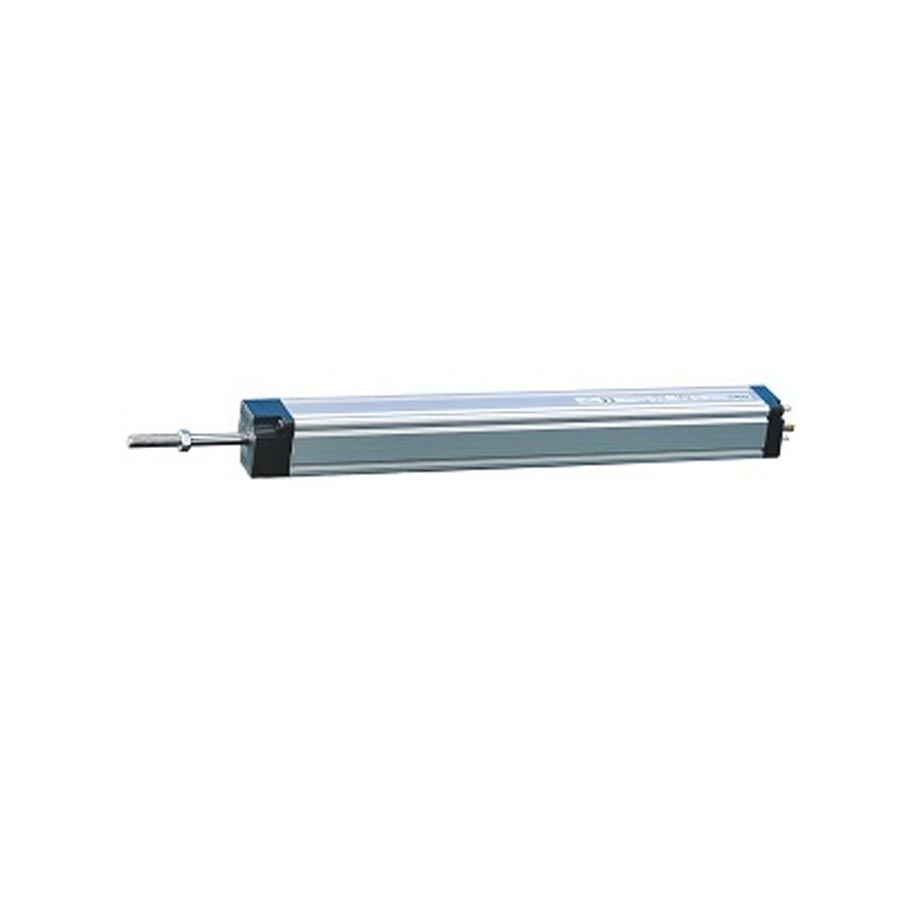

Transducer Potentiometric LWH(LWH-0225),novotechnik

$135.00
$173.00
-$38.00
Quantity

Description

  • Estimated Lead Time : 1 - 10 working days.

  • Manufacturer : Novotechnik

  • Product No. : LWH-0225

  • Product Type : Transducer Potentiometric LWH

  • Type : LWH 0225

  • Electr. measuring range [mm] : 228

  • Defined electr. range [mm] : 225

  • Output signal : Voltage divider

  • Resistance value [kΩ] : 5

  • Resistance tolerance : ± 20 %

  • Independent linearity [± %FS] : 0.07

  • Repeatability : ≤ ±0.01 mm

  • Recommended operating wiper current : ≤ 1 µA

  • Max. wiper current in case of malfunction : 10 mA

  • Max. permissible supply voltage Ub : 42 VDC

  • Effective temp. coefficient of the output-to-applied voltage ratio : typ. 5 ppm/K

  • Insulation resistance (500 VDC) : ≥ 10 MΩ

  • Dielectric strength (500 VAC, 50 Hz) : ≤ 100 µA

  • Max. operational speed : 10 m/s

  • Operational acceleration : 200 m/s²

  • Vibration IEC 60068-2-6 : 20 g, 5 ... 2000 Hz, Amax = 0.75 mm

  • Shock IEC 60068-2-27 : 50 g, 11 ms

  • Protection class ISO 20653 : IP55 (with fastened connector)

  • Operating temperature : -30 ... +100°C

  • Life : > 100 Mio. movements

  • Shipping Weight : 2 Kg
