Temperature Transmitter with digital signal based on HART protocol + Temperature Transmitter(644HANAXAM5Q4 + 0065109D0150N0710XA),rosemount

$1,156.50
$1,478.00
-$321.50
Quantity
Sku : 644HANAXAM5Q4 + 0065109D0150N0710XA
Weight : 5kg

Description

  • Estimated Lead Time : 6 - 8 weeks.

  • Manufacturer : Rosemount

  • Product No. : 644HANAXAM5Q4 + 0065109D0150N0710XA

  • Product Type : Temperature Transmitter with digital signal based on HART protocol + Pt 100 RTD (IEC 751) with Barstock Thermowell

  • 644HANAXAM5Q4 : Temperature Transmitter with digital signal based on HART protocol

  • Mode : 644,Temperature transmitter

  • Transmitter type : H,DIN A head mount - single sensor input

  • Output : A,4–20 mA with digital signal based on HART protocol

  • Product certification : No approval

  • Assemble options : XA,Sensor specified separately and assembled to transmitter

  • Display and interface options : M5,LCD display

  • Calibration certificate : Q4,Calibration certificate (3-point calibration with certificate)

  • Weight : 0.078kg

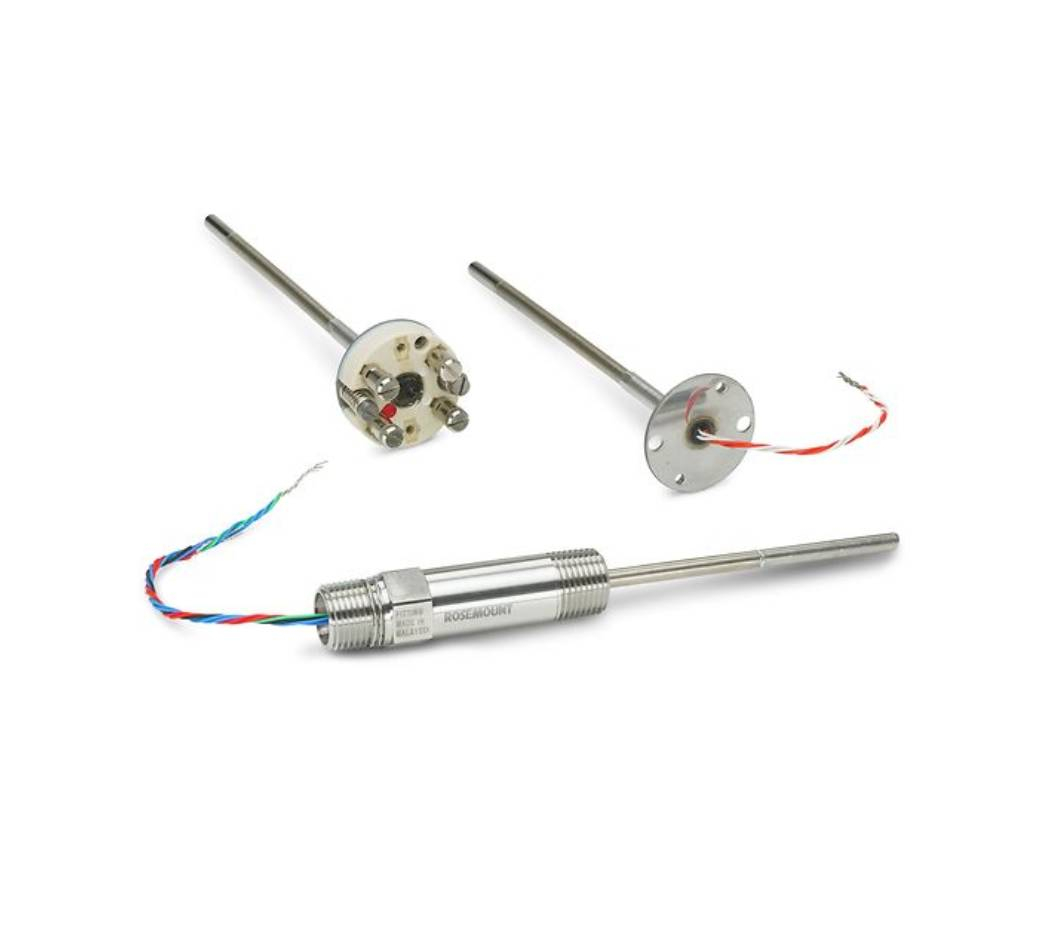

  • 0065109D0150N0710XA : Pt 100 RTD (IEC 751) with Barstock Thermowell

  • Model : Pt 100 RTD (IEC 751) without thermowell

  • Connection head : 1 - Rosemount aluminum with LCD display meter cover

  • Sensor lead wire termination : 0 - Flying leads (no springs on DIN plate)

  • Sensor type : 9 - RTD, Single element, 4-wire vibration resistance

  • Extension : D - DIN Standard 12 1.5

    • Head connection : M24 1.5

    • Instrument connection : 1/2-in. NPT

    • Material : 300 series stainless steel

  • Extension length (N) in millimeters : 0150 - 150 mm (standard for DIN extension used with form B connection head material codes J and L)

  • Thermowell material : N - No thermowell

  • Sensor length (L) in millimeters : 0710

  • Assemble to option : XA - Assemble sensor to specific temperature transmitter (PTFE paste)

  • Weight : 5 Kg

  • Shipping Weight : 8 Kg
