Description
Estimated Lead Time : 6-8 Weeks
Manufacturer : Honeywell

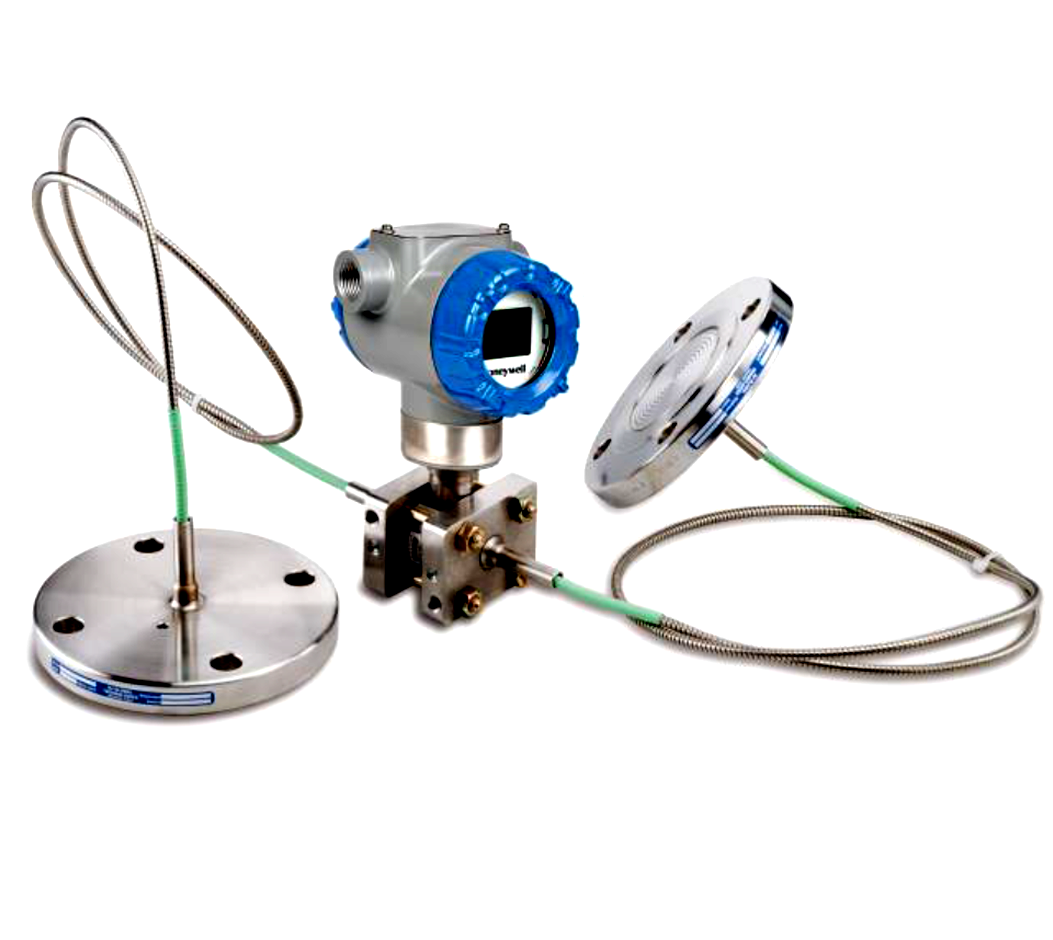

STR745G-11A01J0-BDABA400K-A-AHS-11S-A-10A0
-
STR745G-Measurement Range Std Accuracy
URL : 500 (35)
LRL : -14.7 (-1.0)
Max Span : 500 (35)
Min Span : 5 (0.35)
Units : psi (bar) -
Meter Body & Capillaries
-
Number of Seals : 1 Remote Seal (High Side)
-
Primary Fill Fluid (Meter body) : Silicone Oil 200
-
Secondary Fill Fluid(capillary & seal) : Silicone Oil 200
-
A-In-Line Gauge : 316 SS Bonnet
-
0-Bolts and Nuts forTransmitter Heads : None
-
1-Secondary Fill Fluid(capillary & seal) : Silicone Oil 200
-
J-Connection of Remote Seal to Meter Body : Capillary Length : 15 feet : 4.5 m PVC Coated SS Armor
-
0-Seal Option : None
-
Seal Type : Flush Flanged Seal with Lower
Diaphragm Diameter : 2.4"
Flange Size : 2"
Flange Pressure Rating 1 : ANSI 150
Const.- See Spec. Figure 34-ST-03-104 : 22 -
Wetted Material- Diaphragm : 316L SS
Wetted Material-Lower : 316L SS -
Non-Wetted Material(Upper): 316L SS
Non-Wetted Material(Upper Insert): 316L SS
Bolts : No Selection
Flushing Connections and Plugs : None
Gasket : Klinger® C-4401 -
A-Approvals : FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof
-
Electronic Housing Material & Connection Type
Material : Polyester Powder Coated Aluminum
Connection : 1/2 NPT
Lightning Protection : None -
Application Software : Standard Diagnostics
Output Limit, Failsafe & Write Protect Settings
Write Protect : Disabled
Fail Mode : High> 21.0mAdc
High & Low Output Limits 3 : Honeywell Std (3.8 - 20.8 mAdc)
General Configuration : Factory Standard -
Accuracy and Calibration
Accuracy : Standard
Calibrated Range : Factory Std
Calibration Qty : Single Calibration -
Mounting Bracket :-
Bracket Type : Angle Bracket
Material : Carbon Steel -
Customer Tag Type : No customer tag
-
Unassembled Conduit Plugs & Adapters : No Conduit Plugs or Adapters Required
-
Net Weight Transmitter: 8.3 pounds (3.8 Kg). With Aluminum Housing. Total weight is dependent on seal
-
Shipping Weight : 5 Kg
