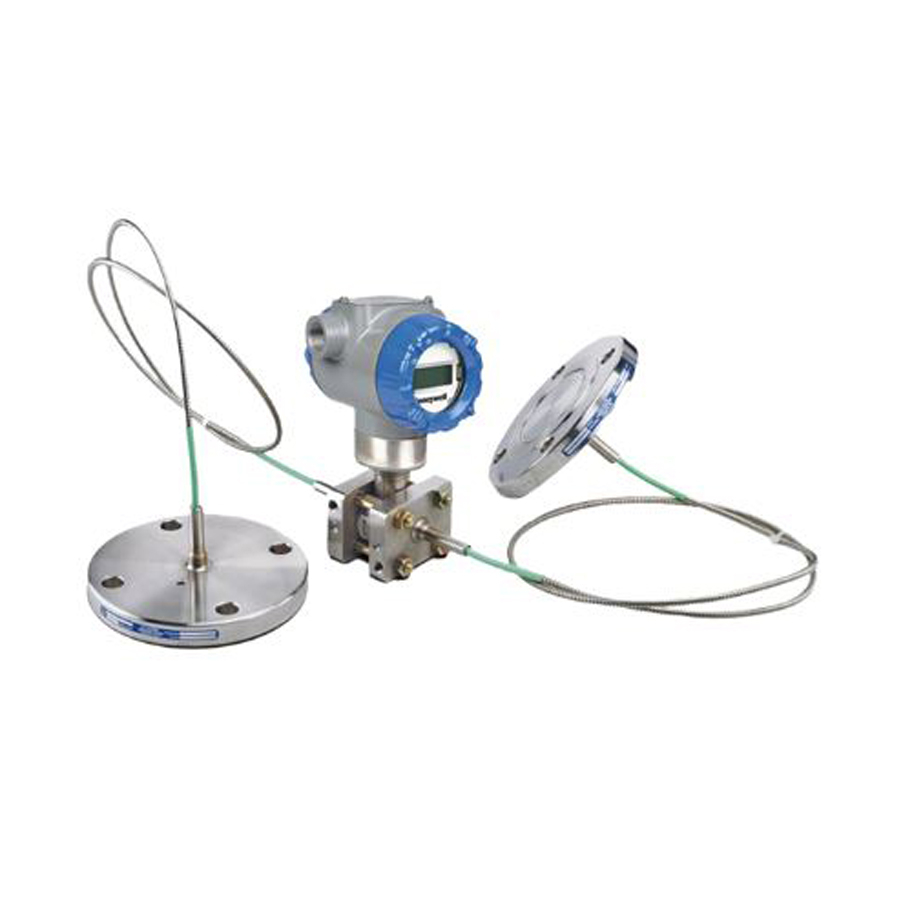

STR700 (DP, GP) Remote Seals(STR73D-21CC1D0-AFCAE21DS-A-BFB-16S-B-11A0-F1,F5),Honeywell

$4,464.90
$5,705.00
-$1,240.10
Quantity
Sku : STR73D-21CC1D0-AFCAE21DS-A-BFB-16S-B-11A0-F1,F5
Weight : 3.8kg

Description

  • Estimated Lead Time : 8 - 10 weeks.
  • Manufacturer : Honeywell
  • Product No. : STR73D-21CC1D0-AFCAE21DS-A-BFB-16S-B-11A0-F1,F5
  • Product type : STR700 (DP, GP) Remote Seals
  • Measurement Range Std Accuracy : STR73D =
    • URL : 100 (7)
    • LRL : -100 (-7)
    • Max Span : 100 (7)
    • Min Span : psi (bar)
  • Number of Seals : 2 = 2 Remote Seals
  • Primary Fill Fluid (Meter body) : 1 = Silicone Oil 200
  • Construction Non-Wetted Adapter Head Materials : C = Dual Head DP 316 SS (bolt-on heads)
  • Bolts and Nuts forTransmitter Heads : C = Carbon Steel Bolts and Nuts
  • Secondary Fill Fluid (capillary & seal)** : 1 = Silicone Oil 200
  • Connection of Remote Seal to Meter Body** : D = 20 feet Capillary Length, 6.1 m, SS Armor
  • Seal Option : 0 = None
  • Seal Type : AFC =
    • Diaphragm Diameter : 3.5"
    • Flange Size : 3"
    • Flange Pressure Rating : ANSI Class 300
  • Wetted Material : AE =
    • Diaphragm : Monel 400®
    • Upper Insert : Monel 400®
  • Non-Wetted Material (upper) : 2 = 316L SS
  • Seal-Capillary Connection : 1 = Center Seal
  • Calibration Rings : D = Monel 400®
  • Flushing Connections and Plugs : S = Two 1/2" with metal plugs
  • Approvals : A = FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof
  • Electronic Housing Material & Connection Type : B =
    • Material : Polyester Powder Coated Aluminum
    • Connection : M20
    • Lightning Protection : None
  • Output/ Protocol : F = none Analog Output, Foundation Fieldbus Digital Protocol
  • Customer Interface Selections : B =
    • Indicator : Basic
    • Ext Zero, Span & Config Buttons : none
    • Languages : English
  • Application Software : 1 = Standard Diagnostics
  • Output Limit, Failsafe & Write Protect Settings : 6 =
    • Write Protect : Disabled
    • Fail Mode : N/A
    • High & Low Output Limits : N/A Fieldbus
  • General Configuration : S = Factory Standard
  • Accuracy and Calibration : B =
    • Accuracy : Standard
    • Calibrated Range : Custom (Unit Data Required)
    • Calibration Qty : Single Calibration
  • Mounting Bracket : 1 =
    • Bracket Type : Angle Bracket
    • Material : Carbon Steel
  • Customer Tag : 1 = One Wired Stainless Steel Tag (Up to 4 lines 26 char/line)
  • Unassembled Conduit Plugs & Adapters : A0 = No Conduit Plugs or Adapters Required _ _ A0 1/2 NPT Male to 3/4 NPT Female 316 SS
  • Certifications & Warranty : F1 = Calibration Test Report & Certificate of Conformance (F3399)
  • Certifications & Warranty : F5 = Certificate of Origin (F0195)
  • Weight : 3.8 Kg
  • Shipping weight : 10 Kg
