Description
Manufacturer : Honeywell
Product No : STG944-A1A-00000-1C,LP,MB+B67K

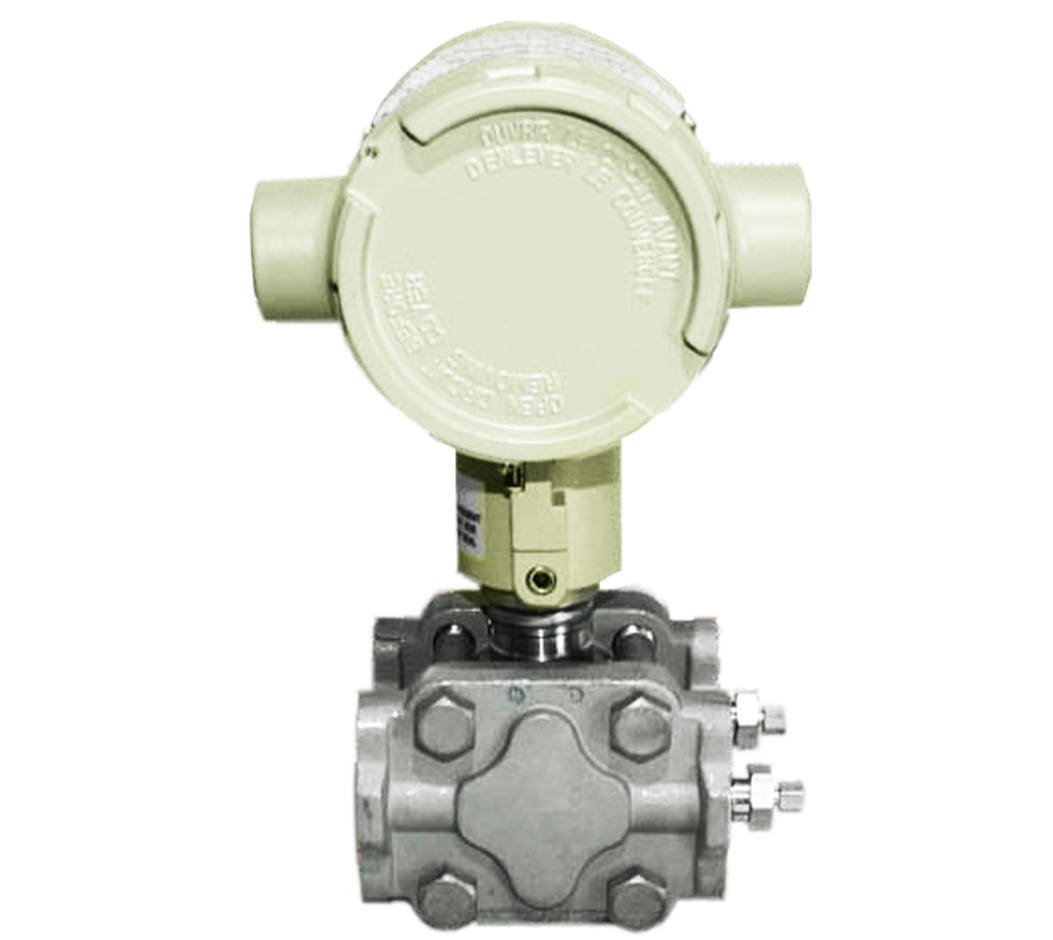

Product Ttype : STG944 Gage Pressure Transmitter
Span : STG944 = 0-5 to 0-500 psi / 0-.35 to 0-35 bar
Materials of Construction : A = Carbon Steel Wetted Process Head, 316 SS Vent/Drain Valves, 316L SS Barrier Diaphragms.
Fill Fluid : 1 = Silicone DC® 200
Process Connection Configuration : A = 1/4 NPT
0 0 0 0 0 : No Selection
Approval Body : 1C = FM Approvals : Explosion Proof Class I, Div. 1, Groups A,B,C,D. Dust-Ignitionproof Class II, III Div. 1, Groups E,F,G. Non-Incendive Class I, Div. 2, Groups A,B,C,D. Intrinsically Safe Class I, II, III, Div. 1, Groups A,B,C,D,E,F,G.
