Description
-
Estimated Lead Time : 6 - 8 weeks.
-
Manufacturer : Honeywell
-
Product No. : STG74L-E1G000-1-C-BD0-13S-B-20A0-00-0000
-

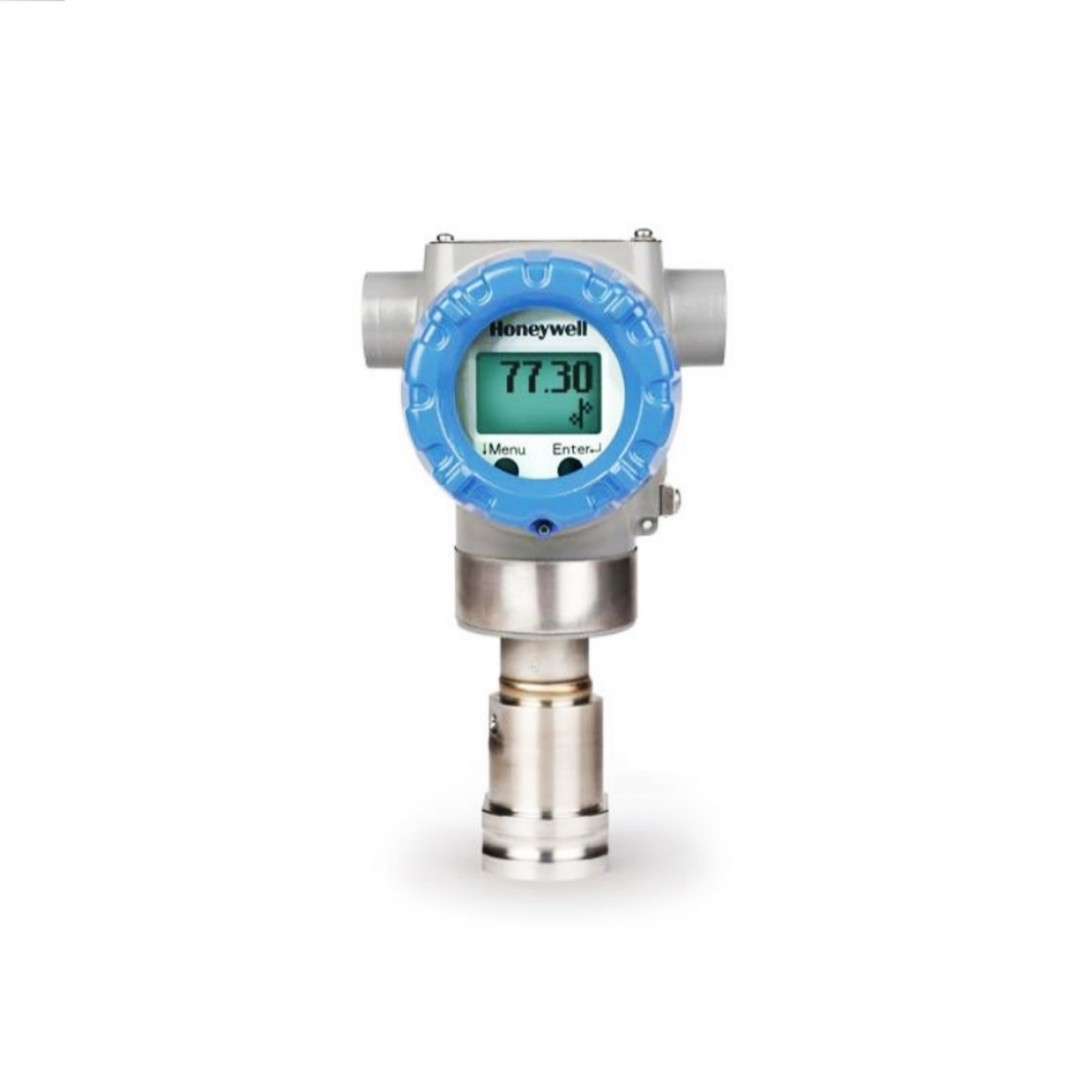

Product type : Gauge In-Line transmitter
-
Model : STG74L Gauge In-Line
-
URL : 500 (35)
-
LRL : -14.7 (-1.0)
-
Max span : 500 (35)
-
Min span : 5 (.35)
-
Units : psi (bar)
-
Process wetted heads & diaphragm materials : E
-
Ref head : 316 Stainless Steel
-
Barrier diaphrm. (wetted) : 316L SS
-
-
Fill fluid : 1 = Silicone oil 200
-
Process connection : G
-
Size : 1/2" NPT (female)
-
Material : Same as Process Head
-
-
Bolts for process head : 0 = -
-
Vent type: 0 = -
-
Location : 0 = -
-
Vent material : 0 = -
-
Gasket material : 0 = -
-
Meter body : 1 = Standard
-
Connection orientation : 1 = High Side Left, Ref Side Right2 / Std Head Orientation
-
Approvals : C = ATEX Explosion proof, Intrinsically Safe & Non-incendive
-
Electronic housing material & connection type : B
-
Material : Polyester powder coated aluminum
-
Connection : M20
-
Lightning protection : -
-
-
Output/protocol : D
-
Analog output : 4-20mA dc
-
Protocol : DE Protocol
-
-
Customer interface selection : 0
-
Indicator : -
-
Ext zero, span and config button : -
-
Language : -
-
-
Application software : 1 = Standard diagnostics
-
Output limit, failsafe & write protect settings : 3
-
Write protect : Enabled
-
Full mode : High > 21.0mAdc
-
High and low output limits : Honeywell Std (3.8 - 20.8 mAdc)
-
-
General cofiguration : S = Factory Standard
-
Accuracy and calibration : B
-
Accuracy : Standard
-
Calibrated range : Custom (Unit Data Required)
-
Calibration Qty : Single calibration
-
-
Mounting bracket : 2
-
Type : Angle Bracket
-
Material : 304 SS
-
-
Customer tag : 0 = -
-
Unassembled conduit plugs & adapters : A0 = No conduit plugs or adapters required
-
Certifications & warranty
-
00 = No additional options
-
-
Factory : Factory identification
-
Weight : 2 kg
-
Shipping weight : 6 Kg
