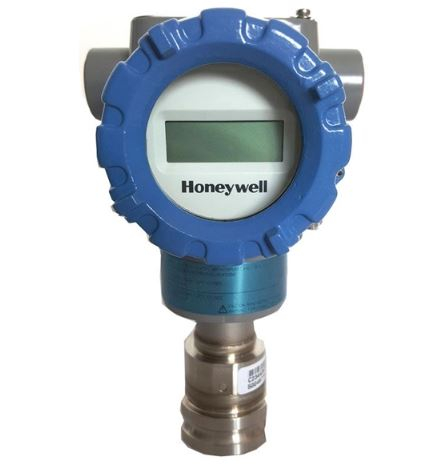

STG700 Gauge Pressure Transmitters(STG775-E1GC4A-1-C-CHS-11S-A-00A0),Honeywell

$1,781.10
$2,275.00
-$493.90
Quantity
Sku : STG775-E1GC4A-1-C-CHS-11S-A-00A0
Weight : 3.8kg

Description

  • Estimated Lead Time : Usually ships in 1 - 10 working days..
  • Manufacturer : Honeywell
  • Product No. : STG775-E1GC4A-1-C-CHS-11S-A-00A0
  • Product type : STG700 Gauge Pressure Transmitters
  • Gauge Dual Head : URL/Max Span : 3000 (210), LRL : -14.7 (-1.0), Min Span : 30 (2.1), Units : psi (bar)
  • Process Head & Diaphragm Materials : E = Process Head/Reference Head Material1b : 316 Stainless Steel, Barrier Diaphragm Material : 316L SS
  • Fill fluid : 1 = Silicone Oil 200
  • Process Connection : G = Size/Type : 1/2" NPT (female), Material : Same as Process Head
  • Bolt/Nuts Materials : C = Carbon Steel
  • Vent/Drain Type/Location : 4 = Head Type : Dual Ended, Vent Type : Standard Vent, Location : End, Vent Material : Matches Head Material
  • Gasket Materials : A = Teflon® or PTFE (Glass Filled)
  • Head/Connect Orientation : 1 = Meter body : Standard, Connection Orientation : High Side Left, Ref Side Right2 / Std Head Orientation
  • Approvals : C = ATEX Explosion proof, Intrinsically Safe & Non-incendive
  • Electronic Housing Material & Connection Type : C = Material : Polyester Powder Coated Aluminum, Connection : 1/2 NPT, Lightning Protection : Yes
  • Output/Protocol : H = Analog Output : 4-20mA dc, Digital Protocol = HART Protocol
  • Customer Interface Selections : S = Indicator : Standard(w/Internal Zero,Span&Config buttons), Ext Zero,Span & Config Buttons : None, Languages : EN
  • Application Software : 1 = Disabled
  • Output Limit, Failsafe & Write Protect Settings : 1 = Write Protect : Disabled, Fail Mode : High> 21.0mAdc, High & Low Output Limits : Honeywell Std (3.8 - 20.8 mAdc)
  • General Configuration : S = Factory Standard
  • Accuracy and Calibration : A = Accuracy : Standard, Calibrated Range : Factory Standard, Calibration Qty : Single Calibration
  • Mounting Bracket : 0 = None
  • Customer Tag : 0 = No customer tag
  • Unassembled Conduit Plugs & Adapters : A0 = No Conduit Plugs or Adapters Required
  • Weight : 3.8 Kg
  • Shipping Weight : 8 Kg
