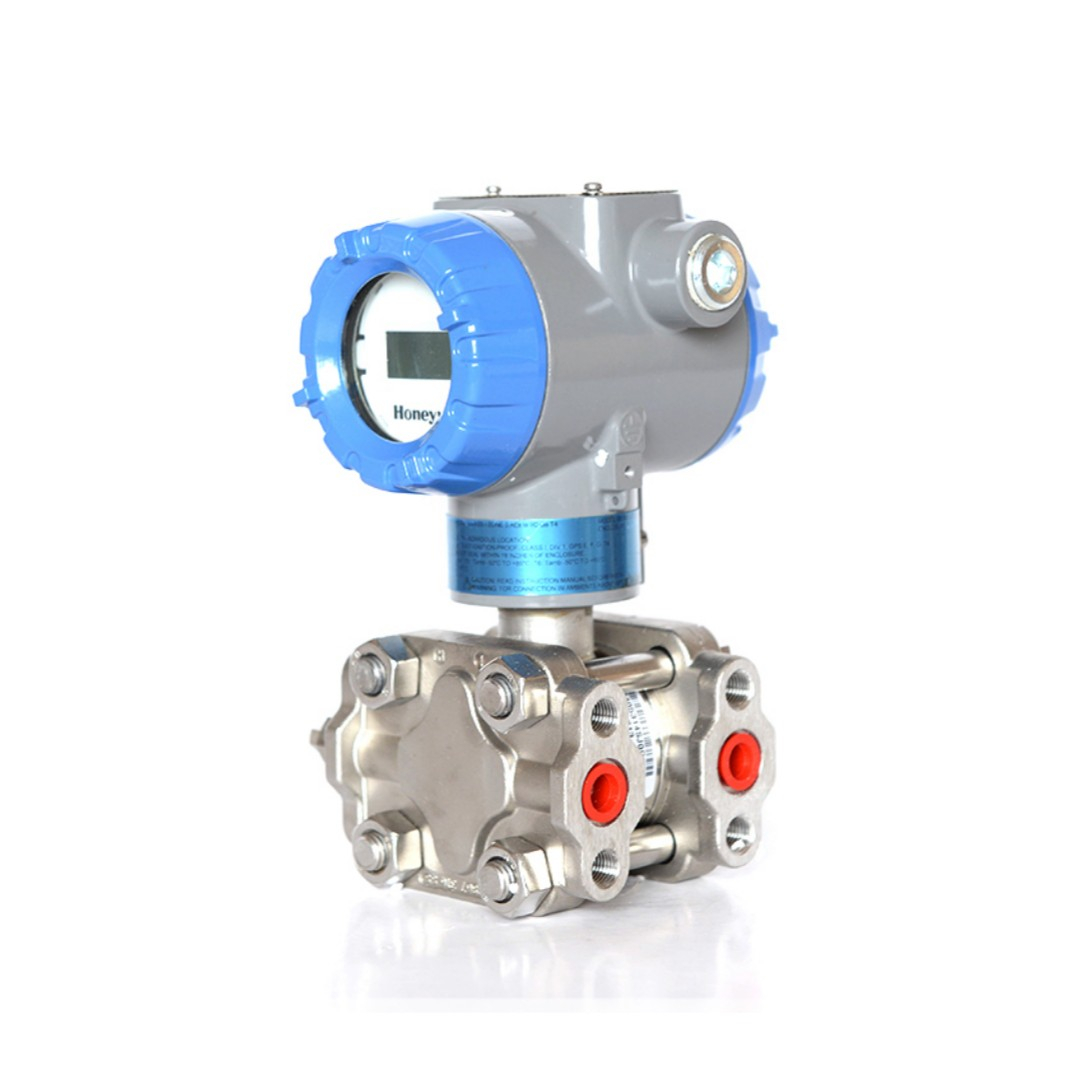

STD800 SmartLine Differential Pressure Transmitter(STD820-E2HC4AS-1-A-AHE-11S-B-11A2-OX-F1-0000),honeywell

$2,948.40
$3,767.00
-$818.60
Quantity
Sku : STD820-E2HC4AS-1-A-AHE-11S-B-11A2-OX-F1-0000
Weight : 4kg

Description

  • Estimated Lead Time : 6 - 8 weeks.

  • Manufacturer : Honeywell

  • Product No. : STD820-E2HC4AS-1-A-AHE-11S-B-11A2-OX-F1-0000

  • Product type : Differential Pressure Transmitter

  • Model : STD810

    • URL : 400/(1000)

    • LRL : -400/(-1000)

    • Max Span : 400/(1000)

    • Min Span : 1.0 (2.5)

    • Units : H2O (mbar)

  • Process head material : E =316 Stainless steel

  • Diaphragm material : E = 316L Stainless steel

  • Fill fluid : 2 = Fluorinated Oil CTFE

  • Process connection : H

    • Size : 1/2" NPT female

    • Material : Match head & head bolt materials selections

  • Bolt/nut materials : C = Carbon steel

  • Vent/drain type : 4

    • Head type : Dual ended

    • Vent type : Standard vent

    • Location : End

    • Vent materials : Matches head material

  • Gasket material : A = Teflon® or PTFE (Glass Filled)

  • Static pressure : S = Standard Static Pressure - 4500 psig (310 bar) except STD810: 50 psi (3.5 bar)

  • Meter body : 1 = Standard

  • Connection orientation : 1 = High Side Left, Low Side Right2 / Std Head Orientation

  • Approvals : A = FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof

  • Electronic housing material & connection type : A

    • Material : Polyester Powder Coated Aluminum

    • Connection : 1/2 NPT

    • Lightning protection : -

  • Output/protocol : H

    • Analog output : 4-20mA dc

    • Protocol : HART Protocol

  • Customer interface selection : E

    • Indicator : Advanced

    • Ext zero, span and config button : Yes

    • Language : EN, GR, FR, IT,SP, RU, TU

  • Application software : 1 = Standard diagnostics

  • Output limit, failsafe & write protect settings : 1

    • Write protect : Disabled

    • Full mode : High> 21.0mAdc

    • High and low output limits : Honeywell Std (3.8 - 20.8 mAdc)

  • General cofiguration : S = Factory Standard

  • Accuracy and calibration : B

    • Accuracy : Standard

    • Calibrated range : Custom (Unit Data Required)

    • Calibration Qty : Single calibration

  • Mounting bracket : 1

    • Type : Angel bracket

    • Material : Carbon steel

  • Customer tag : 1 = One Wired Stainless Steel Tag

  • Unassembled conduit plugs & adapters : A2 = 1/2 NPT Male to 3/4 NPT Female 316 SS Certified Conduit Adapter

  • Certifications & warranty

    • OX = Cert Clean for O2 or CL2 service per ASTM G93

    • F1 = Calibration Test Report & Certificate of Conformance (F3399)

  • Factory : Factory identification

  • Weight : 4 kg

  • Shipping weight : 8 Kg
