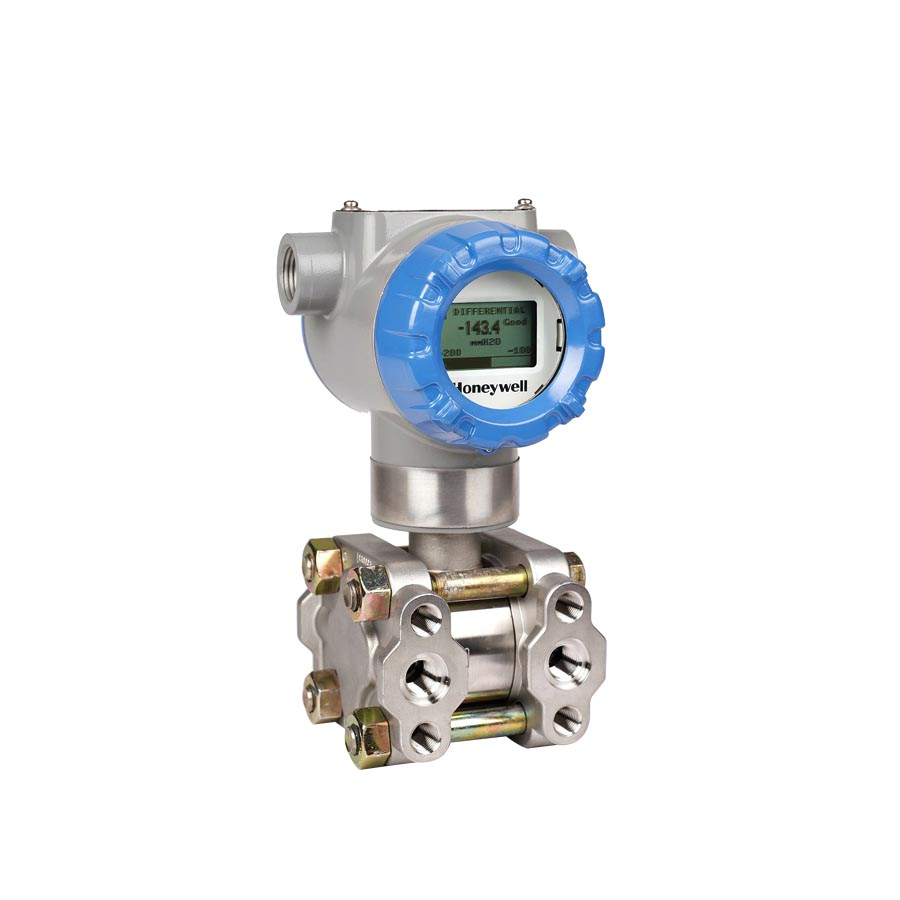

STD700 SmartLine Differential Pressure Transmitter(STD720-E1AN4AS-A-A-ADC-11S-A-10A0-F1-0000),honeywell

$2,681.10
$3,426.00
-$744.90
Quantity

Description

  • Estimated Lead Time : 10 - 14 weeks.

  • Manufacturer : Honeywell

  • Product No. : STD720-E1AN4AS-A-A-ADC-11S-A-10A0-F1-0000

  • Product type : Differential Pressure Transmitter

  • Model : ST720

  • URL : 400/(1000)

  • LRL : -400/(-1000)

  • Max span : 400/(1000)

  • Min span : 4.0 (10)

  • Units : H2O (mbar)

  • Process wetted heads & diaphragm materials : E

    • Process head material : 316 Stainless Steel

    • Diaphgram material : 316L Stainless Steel

  • Fill fluid : 1 = Silicone 200 oil

  • Process connection : A

    • Size : -

    • Material : -

  • Bolts for process head : N = Grade 660 (NACE A286) with NACE 304 SS Nuts

  • Vent type: 4 = Dual Ended (Standard)

  • Location : 4 = End

  • Vent material : 4 = Matches Head Material

  • Gasket material : A = Teflon® or PTFE (Glass Filled)

  • Static pressure : S = Standard static pressure - 4500 psig (315 bar)

  • Meter body : 1 = Standard

  • Connection orientation : 1 = High Side Left, Ref Side Right2 / Std Head Orientation

  • Approvals : A = FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof

  • Electronic housing material & connection type : A

    • Material : Polyester powder coated aluminum

    • Connection : 1/2 NPT

    • Lightning protection : -

  • Output/protocol : D

    • Analog output : 4-20mA dc

    • Protocol : DE Protocol

  • Customer interface selection : C

    • Indicator : Basic

    • Ext zero, span and config button : Yes

    • Language : English

  • Application software : 1 = Standard diagnostics

  • Output limit, failsafe & write protect settings : 1

    • Write protect : Enabled

    • Full mode : High> 21.0mAdc

    • High and low output limits : Honeywell Std (3.8 - 20.8 mAdc)

  • General cofiguration : S = Factory Standard

  • Accuracy and calibration : A

    • Accuracy : Standard

    • Calibrated range : Factory Std

    • Calibration Qty : Single calibration

  • Mounting bracket : 1

    • Type : Angle bracket

    • Material : Carbon steel

  • Customer tag : 0 = -

  • Unassembled conduit plugs & adapters : A0 = -

  • Certifications & warranty

    • F1 = Calibration Test Report & Certificate of Conformance (F3399)

  • Factory : Factory identification

  • Weight : 4 kg

  • Shipping weight : 8 Kg
