Description
-
Estimated Lead Time : 1 - 2 weeks.
-
Manufacturer : Honeywell
-
Product No. : STD725-E1AC4AS-1-A-AHS-11S-A-00A0-00-0000
-

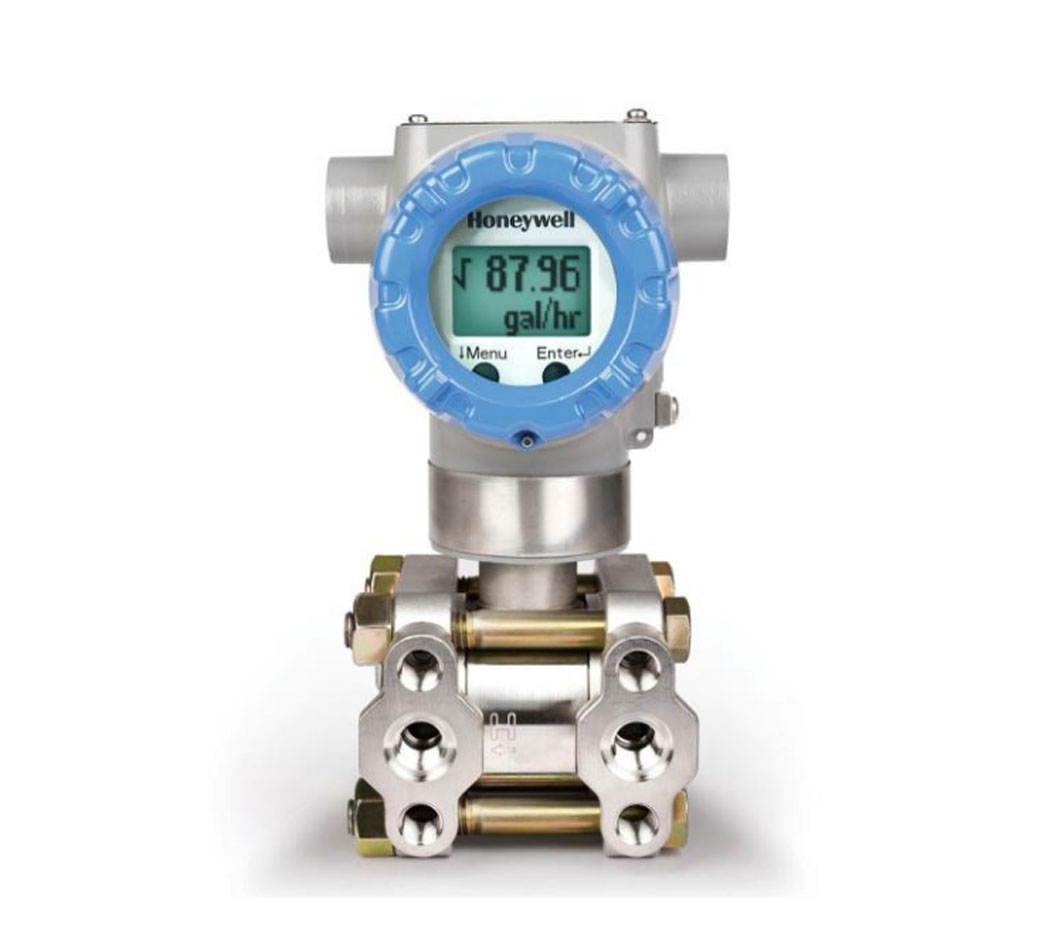

Product type : STD700 Differential Pressure Transmitter
-
Measurement Range : 400/(1000) URL, -400/(-1000) LRL, 400/(1000) Max span, 4.0 (10) Min span, H2O (mbar) units.
-
Process Head Material : E = 316 Stainless Steel, Diaphragm Material = 316L Stainless Steel.
-
Fill Fluid : 1 = Silicone Oil 200
-
Process Connection : A = None, None (1/4" NPTF female thread Std)
-
Bolt/Nut Materials : C = Carbon Steel
-
Head type : 4 = Dual Ended, Vent Type = Standard Vent, Location = End, Vent Material = Matches Head Material
-
Gasket Material : A = Teflon® or PTFE (Glass Filled)
-
Static Pressure : S = Standard Static Pressure - 4500 psig (315 bar)
-
Head/Connect Orientation : 1 = Standard, High Side Left, Low Side Right2 / Std Head Orientation
-
Approvals : A = FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof
-
Electronic Housing Material & Connection Type : A = Polyester Powder Coated Aluminum, 1/2 NPT
-
Output/ Protocol : H = 4-20mA dc, HART Protocol
-
Indicator : S = Zero,Span & Config Buttons), Ext Zero, Span & Config Buttons = None, Languages = English.
-
Application Software : 1= Standard Diagnostics
-
Write Protect : 1 = Disabled, Fail Mode = High> 21.0mAdc, High & Low Output Limits = Honeywell Std (3.8 - 20.8 mAdc).
-
General Configuration : S = Factory Standard
-
Accuracy : A = standard, Calibrated Range = Factory Std , Calibration Qty = Single Calibration
-
Mounting Bracket : 0 = Angle Bracket, Carbon Steel
-
Customer Tag : 0 = No customer tag
-
Unassembled Conduit Plugs & Adapters : A0 = No Conduit Plugs or Adapters Required
-
Certifications & Warranty : 00 = None - No additional options
-
Factory : 0000 = Factory Identification
-
Weight : 3.8 Kg
-
Shipping Weight : 8 Kg
