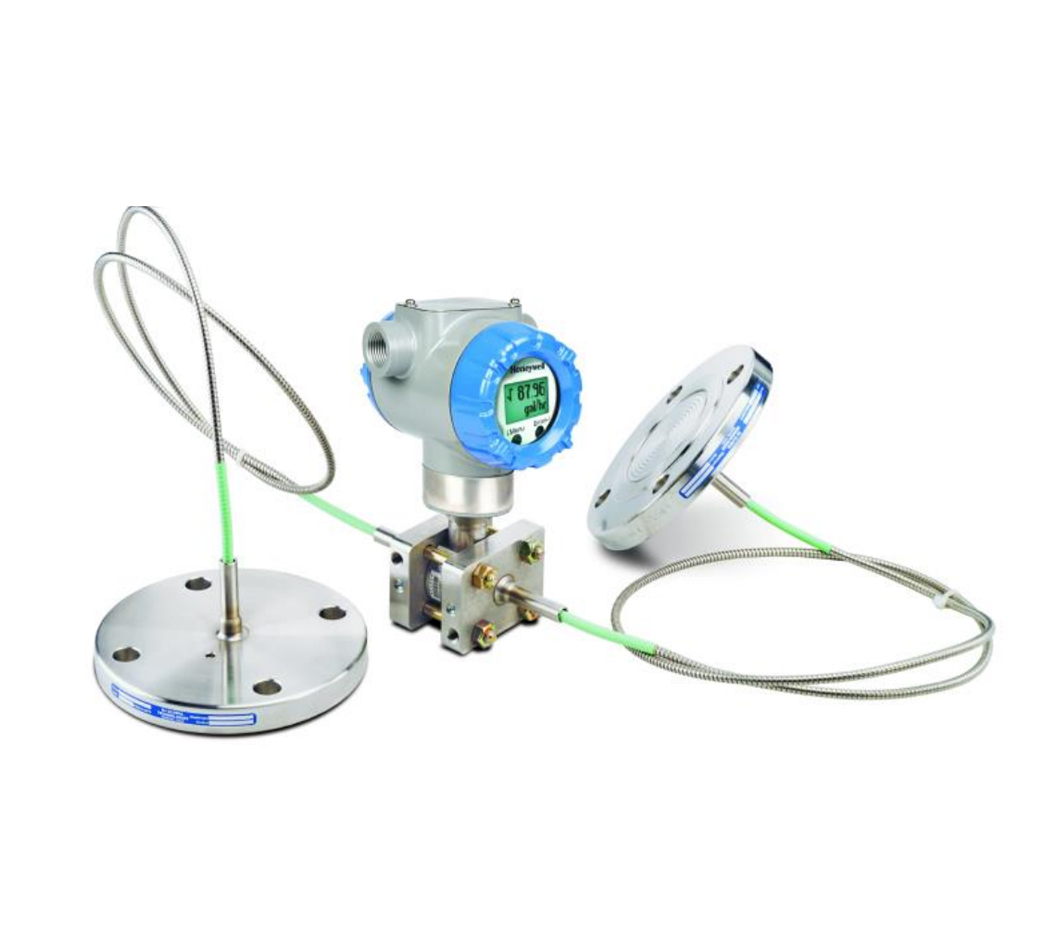

ST700 Remote Diaphragm Seal Transmitters(STR735D-21CS1C0-CDABA400K-C-GHS-11S-A-00A0-FG-0000),Honeywell

$5,877.90
$7,511.00
-$1,633.10
Quantity
Sku : STR735D-21CS1C0-CDABA400K-C-GHS-11S-A-00A0-FG-0000
Weight : 3.8kg

Description

  • Estimated Lead Time : 8 - 10 weeks.

  • Manufacturer : Honeywell

  • Product No. : STR735D-21CS1C0-CDABA400K-C-GHS-11S-A-00A0-FG-0000

  • Product type : ST700 Remote Diaphragm Seal Transmitters

  • Number of Seals : 2 = Remote Seals

  • Primary Fill Fluid (Meter body) : 1 = Silicone Oil 200

  • Dual Head DP : C = 316 SS (bolt-on heads)

  • Bolts and Nuts forTransmitter Heads : S = 316 SS Bolts and Nuts

  • Secondary Fill Fluid (capillary & seal) : 1 = Silicone Oil 200

  • Connection of Remote Seal to Meter Body : C = 15 feet, 4.5 m, SS Armor

  • Seal Option : 0 = None

  • Flush Flanged Seal with Lower (CDA) : Diaphragm Diameter = 2.9" , Flange size = 3", ANSI Class 150

    • Diaphragm Diameter : 2.9"
    • Flange size : 2"
    • Flange pressure rating : ANSI 150

  • Wetted Material : BA =316L SS Diaphragm, 316L SS Lower

  • Non-Wetted Material (upper, upper insert) : 4 = 316L SS Upper, 316L SS Upper Insert

  • Bolts : 0 = No Selection

  • Flushing Connections and Plugs : 0 = None

  • Gasket : K = Klinger® C-4401 (non-asbestos)

  • Approvals : C = ATEX Explosion proof, Intrinsically Safe & Non-incendive

  • Electronic Housing Material & Connection Type : G =

    • Material : 316 Stainless Steel (Grade CF8M)
    • Connection : 1/2 NPT
    • Lightning Protection : Yes

  • Output/ Protocol : H = 4-20mA dc Analog Output, HART Protocol

  • Customer Interface Selections : S =

    • Indicator : Standard (w/internal Zero, Span & Conf Buttons)
    • Ext Zero, Span & Config Buttons :Yes
    • Languages : English

  • Application Software : 1 = Standard Diagnostics

  • Output Limit, Failsafe & Write Protect Settings : 1 =

    • Write Protect : Disabled
    • Fail Mode : High> 21.0mAdc
    • High & Low Output Limits : Honeywell Std (3.8 - 20.8 mAdc)

  • General Configuration : S = Factory Standard

  • Accuracy and Calibration : A =

    • Accuracy : Standard
    • Calibrated Range : Factory Std
    • Calibration Qty : Single Calibration

  • Mounting Bracket : 0 = None

  • Customer Tag : 0 = No customer tag

  • Unassembled Conduit Plugs & Adapters : A0 = No Conduit Plugs or Adapters Required

  • Certifications & Warranty : FG = NACE MR0175; MR0103; ISO15156 Process wetted parts only

  • Factory : 0000 = Factory Identification

  • Weight : 3.8 Kg

  • Shipping Weight : 8 Kg
