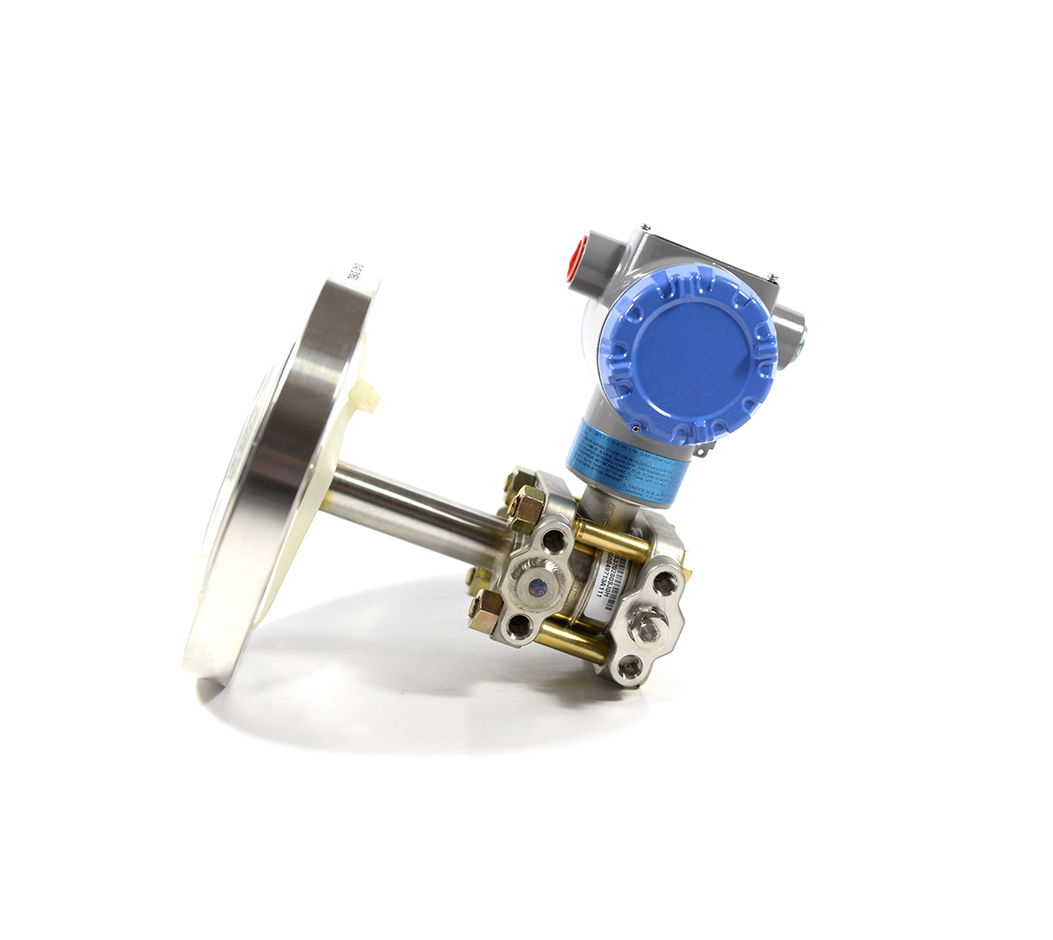

SmartLine Flange Mounted(STF73F-41AS4A-T00-0-AHC-13C-B-01A0-F1-0000),honeywell

$3,333.60
$4,259.00
-$925.40
Quantity
Sku : STF73F-41AS4A-T00-0-AHC-13C-B-01A0-F1-0000
Weight : 9kg

Description

  • Estimated Lead Time : 8 - 10 weeks.

  • Manufacturer : Honeywell

  • Product No. :  STF73F-41AS4A-T00-0-AHC-13C-B-01A0-F1-0000

  • Product type : SmartLine Flange Mounted

  • 4 - Process Wetted Heads & Diaphragm Materials

  • Design : Pseudo Flange

  • Ref.Head : 316 SS

  • Vent Drain Valve on Ref. Head 2 : 316 SS

  • Barrier Diaphrm. (wetted) : 316L SS

  • Diaphrm. Plate (wetted) : N/A

  • Extension (wetted) : N/A

  • 1 - Fill Fluid : Silicone Oil 200

  • A - Process Connection

  • Reference Head : 1/4 NPT

  • Range : High Pressure Side

  • S - Bolts for Process Heads : 316 SS Bolts

  • 4 - Vent/Drain Type/Location

  • Ref. Head : Dual Ended

  • Type Vent : std

  • Type Location : end

  • Vent Material : Matches Head Material

  • A -  Gasket Material : Teflon® or PTFE (Glass Filled)

  • T -  Flange

  • Pseudo Flange on Standard DP : 2" ANSI Class 150 with Vent/Drain

  • Flange Material : 316L SS (wetted)

  • Threaded Nut Ring Material : Not Applicable

  • 0 - Gasket ring (wetted) : No Selection

  • 0 - Extension (wetted) : No Selection

  • 0 - Approvals : No Approvals Required

  • A -  Electronic Housing Material & Connection Type

  • Material : Polyester Powder Coated Aluminum

  • Connection : 1/2 NPT

  • Lightning Protection : None

  • H - Output/ Protocol

  • Analog Output : 4-20mA dc

  • Digital Protocol : HART Protocol

  • C - Customer Interface Selections

  • Indicator : Basic

  • Ext Zero, Span & Config Buttons : yes

  • Languages : english

  • 1 - Application 3F Software : Standard diagnostics

  • 3 - Output Limit,Failsafe & Write Protect Settings

  • Write Protect : Enabled

  • Fail Mode : High> 21.0mAdc

  • High & Low Output Limits : Honeywell Std (3.8 - 20.8 mAdc)

  • C - General Configuration : Custom Configuration (Unit Data Required from customer)

  • B - Accuracy and Calibration

  • Accuracy : Standard

  • Calibrated Range : Custom (Unit Data Required)

  • Calibration Qty : Single Calibration

  • 0 - Mounting Bracket : None (not required with flange mount unit)

  • 1 - Customer Tag : One Wired Stainless Steel Tag (Up to 4 lines 26 char/line)

  • A0 - Unassembled Conduit Plugs & Adapters : No Conduit Plugs or Adapters Required

  • F1 - Certifications & Warranty : Calibration Test Report & Certificate of Conformance (F3399) F

  • 0000 - Factory : Factory Identification

  • Shipping weight : 10 Kg
