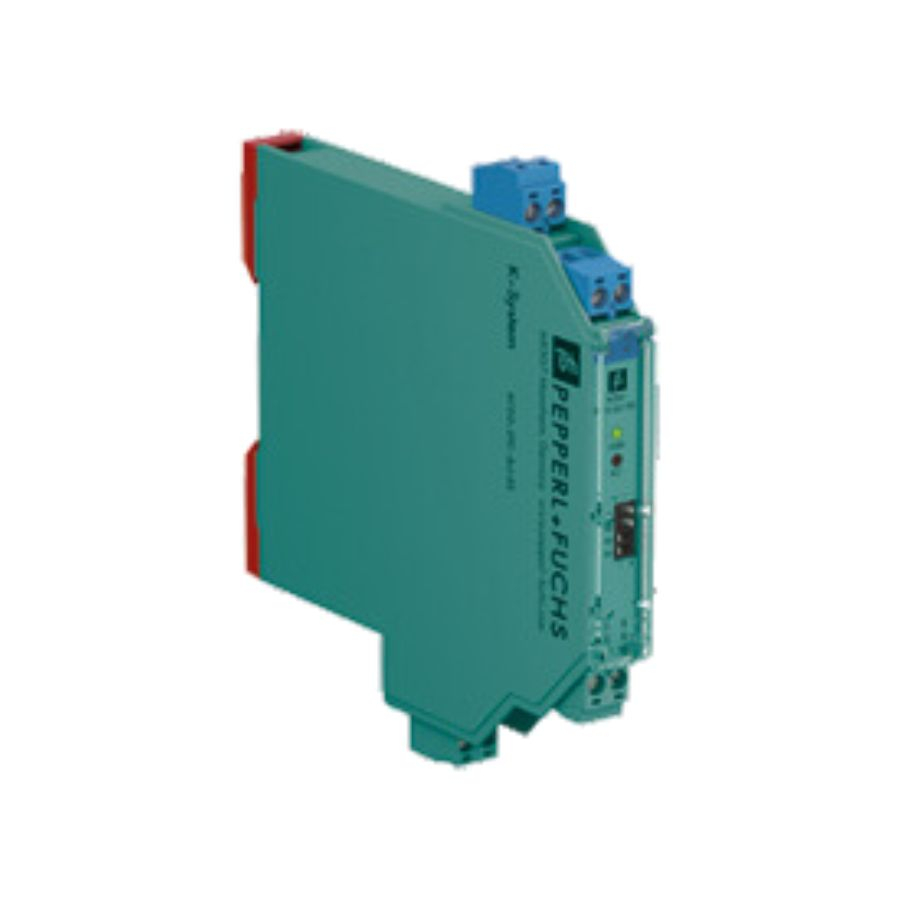

SMART Transmitter Power Supply(KCD2-STC-Ex1,ES),pepperl+fuchs

$100.80
$129.00
-$28.20
Quantity

Description

  • Estimated Lead Time: 1 - 10 Working days.

  • Manufacturer: Pepperl+Fuchs

  • Product Number: KCD2-STC-Ex1,ES

  • Product Type: SMART Transmitter Power Supply

  • Signal type: Analog input

  • Rated voltage: 19 ... 30 V DC

  • Rated current: ≤ 50 mA

  • Power consumption: ≤ 1.2 W

  • Input signal: 4 ... 20 mA, limited to approx. 27 mA reverse polarity protected

  • Output signal:

    • Source mode: 4 mA ... 20 mA or 1 V ... 5 V

    • Sink mode: 4 ... 20 mA, operating voltage 16 ... 28 V

  • Safety Integrity Level (SIL): Up to SIL 3 acc. to IEC/EN 61508

  • Connection: screw terminals

  • Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001

  • Dimensions (W x H x D): 12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch), housing type A2

  • Weight: 0.1 Kg

  • Shipping Weight: 1.5 kg
