Description
Estimated Lead Time : 10 - 12 weeks
Manufacturer : Siemens
Article Number (Market Facing Number) : 7MF4234-1FA10-2BC6

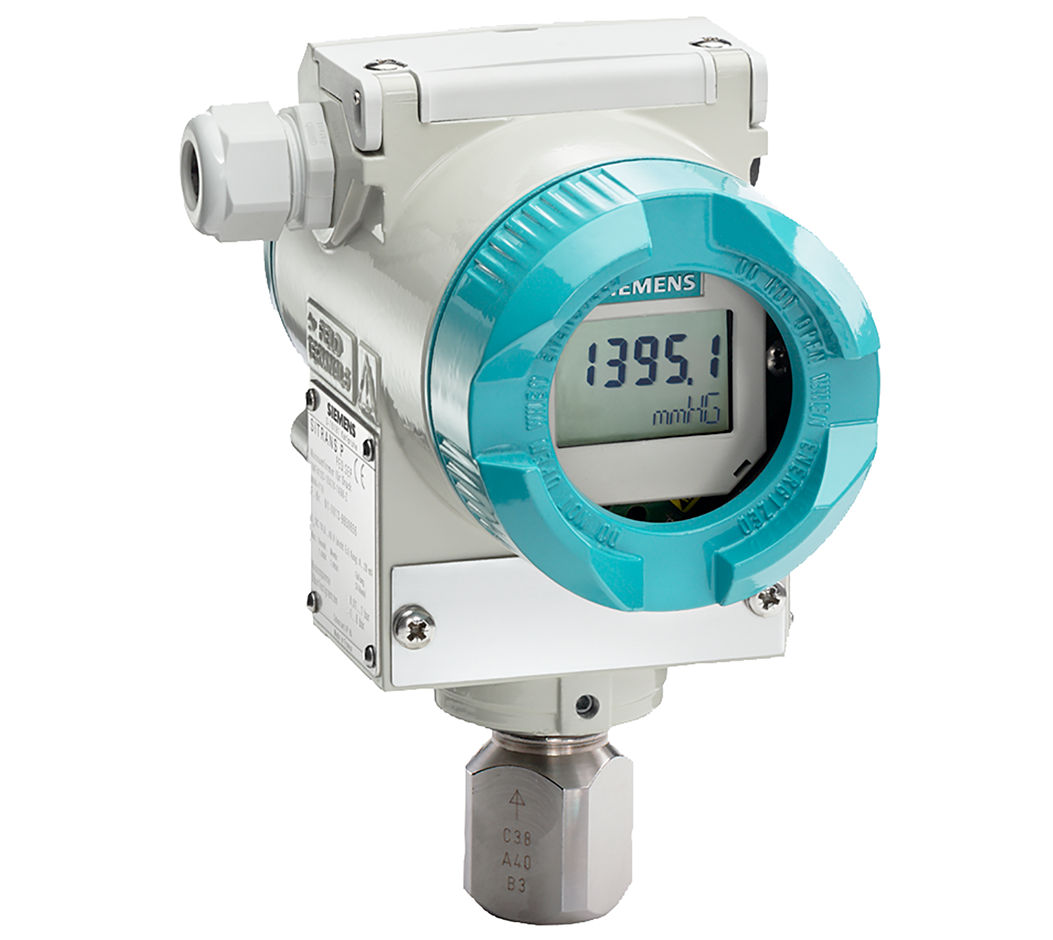

Product Description : SITRANS P, transmitter for absolute pressure from pressure transmitter series, DS III PROFIBUS PA series Measuring cell filling silicone oil, normal cleaning Measuring range: 1300 mbar a (18.9 psi a), overload limit 10 bar Diaphragm stainless steel measuring cell stainless steel Process connection: female thread 1/2-14 npt Die-cast aluminium housing International design english inscription an documentation as cd Explosion protection (ATEX) intrinsic safety (EEx ia) Electric connection and cable inlet: cable gland 1/2-14 npt With indicator (digital display visible)
Product family : Not available
Product Lifecycle (PLM) : PM300:Active Product
Metal Factor : None
Delivery information
Export Control Regulations : ECCN : EAR99 / AL : 9I99901
Standard lead time ex-works : 20 Day/Days
Net Weight (kg) : 2 Kg
Product Dimensions (W x L x H) : Not available
Packaging Dimension : Not available
Package size unit of measure : Not available
Quantity Unit : 1 Piece
Packaging Quantity : 1
EAN : Not available
UPC : Not available
Commodity Code : 90262020
LKZ_FDB/ CatalogID : FI01-1
Product Group : 4770
Country of origin : France
Compliance with the substance restrictions according to RoHS directive : Since: 20.07.2017
Product class : C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
