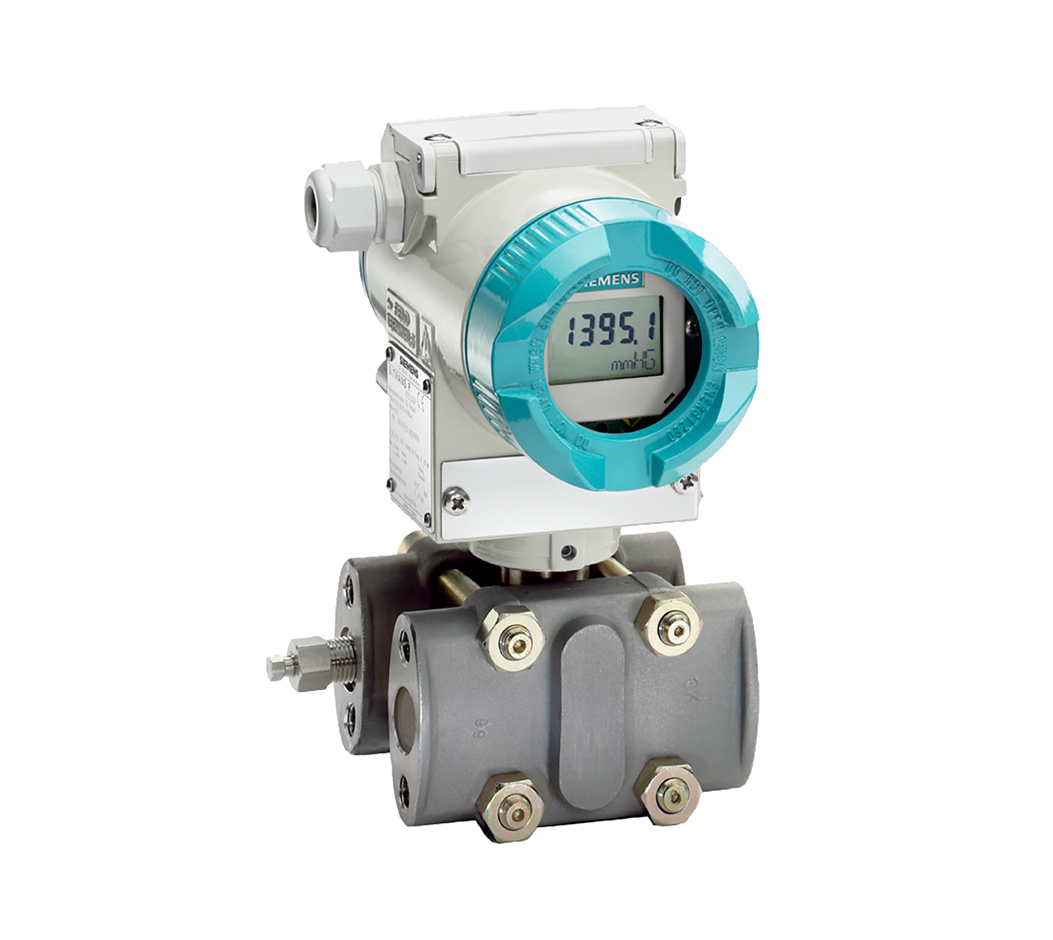

SITRANS P Pressure Transmitters(7MF4333-1HA02-2EB1-Z A01+Y01+C11),siemens

$1,237.50
$1,581.00
-$343.50
Quantity

Description

  • Estimated Lead Time : 10 - 14 weeks.
  • Manufacturer : Siemens
  • Product No. : 7MF4333-1HA02-2EB1-Z A01+Y01+C11
  • Product type : SITRANS P Pressure Transmitters
  • 7 MF 4 3 3 3 : SITRANS P pressure transmitters for absolute pressure, from the differential pressure, series DS III HART
  • 1 : Silicone oil Measuring cell filling, Standard Measuring cell cleaning
  • Span : H = 1 ... 30 bar a (14.5 ... 435 psi a)
  • Wetted parts materials : A = Stainless steel Seal diaphragm, Stainless steel Parts of measuring cell
  • Process connection : 0 = Female thread ¼-18 NPT with flange connection • Sealing screw opposite process connection Mounting thread M10 to DIN 19213 (only for replacement needs)
  • Non-wetted parts materials : 2 = Stainless steel Process flange screws, Die-cast aluminium Electronics housing.
  • Version : 2 = International version, English label inscriptions, documentation in 5 languages on CD
  • Explosion protection : E = With ATEX, Type of protection - Ex nA/nL (zone 2)
  • Electrical connection / cable entry : B = Screwed gland M20x1.5
  • Display : 1 = Without (digital indicator hidden, setting: mA)
  • Pressure transmitter with mounting bracket made of : A01 = Steel
  • Measuring range to be set : Y01= Specify in plain text (max. 5 digits): Y01: ... up to ... mbar, bar, kPa, MPa, psi
  • C11 : Quality inspection certificate (Factory calibration) to IEC 60770-2
  • Weight : 4.5 Kg
  • Shipping weight : 6 Kg
