Description
Estimated Lead Time : In stock. Usually ships in 10-12 working days
Manufacturer : Siemens
Product
Article Number (Market Facing Number) : 7MF4033-1FA10-2AC6-Z C11+Y01

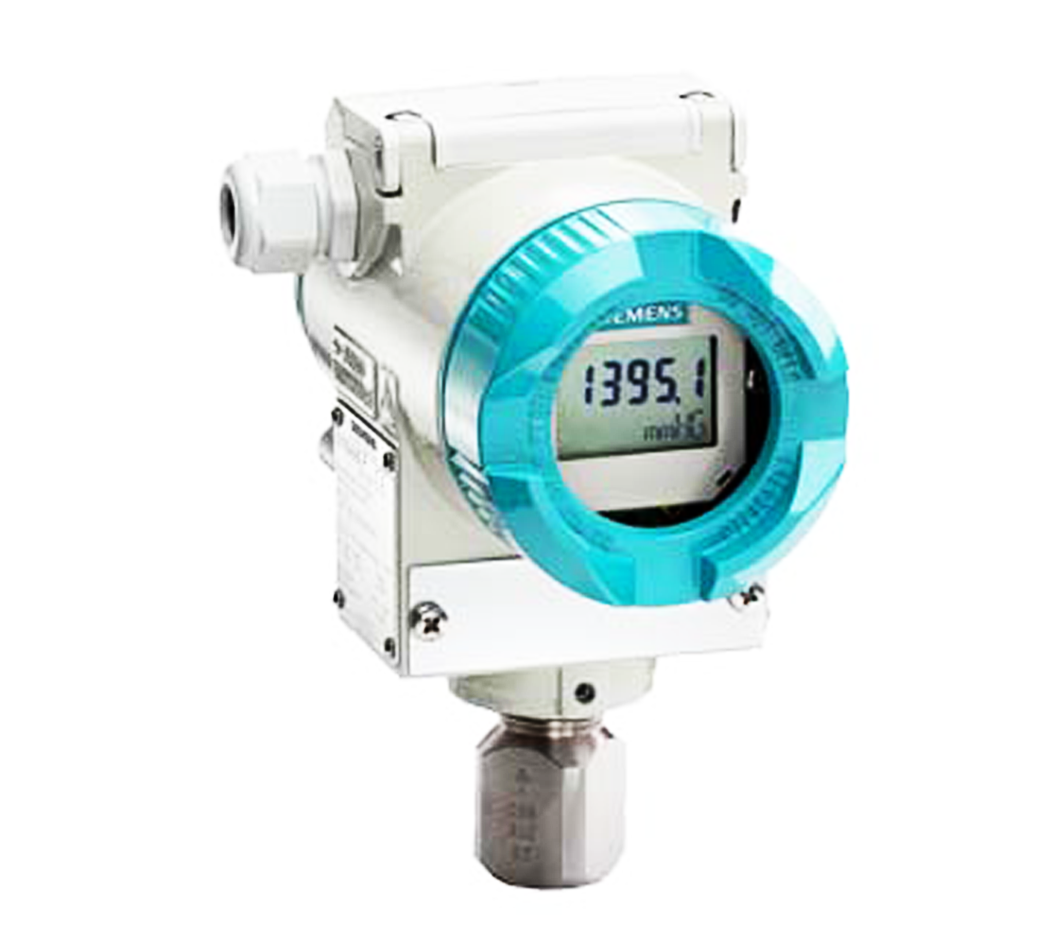

Product Description : SITRANS P DS III / P410, HART,4-20 mA transmitter for pressure Measuring cell filling silicone oil, normal cleaning 1.6 to 160 bar g (23.2 to 2320 psi g), Overload limit 250 bar, Diaphragm stainless steel, measuring cell stainless steel Female thread 1/2-14 NPT Die-cast aluminium housing International design english inscription and documentation as cd None explosion protection Electric connection and cable inlet: cable gland 1/2-14 npt Housing cover with window Test certificate according to standard IEC 60770-2 Range (linear characteristic) specify in plain text:, Y01:... to ...mBar,kpa,mpa,...
Product family : Not available
Product Lifecycle (PLM) : PM400:Phase Out Started
PLM Effective Date : Product phase-out since: 01/02/19
Notes : Sucessor:Substitute: 7MF03..-.....-.... : Please enter text for every Y option (using the Configurator).
Price data
Price Group / Headquarter Price Group : 8P1
Delivery information
Export Control Regulations : ECCN : EAR99 / AL : N
Standard lead time ex-works : 15 Day/Days
Net Weight (kg) : 2 Kg
Product Dimensions (W x L x H) : Not available
Packaging Dimension : Not available
Package size unit of measure : Not available
Quantity Unit : 1 Piece
Packaging Quantity : 1
Additional Product Information
EAN : Not available
UPC : Not available
Commodity Code : 90262020
LKZ_FDB/ CatalogID : FI01-1
Product Group : 4770
Country of origin : France
Compliance with the substance restrictions according to RoHS directive : Since: 20/07/17
Product class : C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation : Yes
- Shipping Weight : 4 Kg
