Description

Estimated Lead Time : 2 - 4 weeks.

Manufacturer : Siemens

Product No. : 6AG1331-1KF02-7AB0

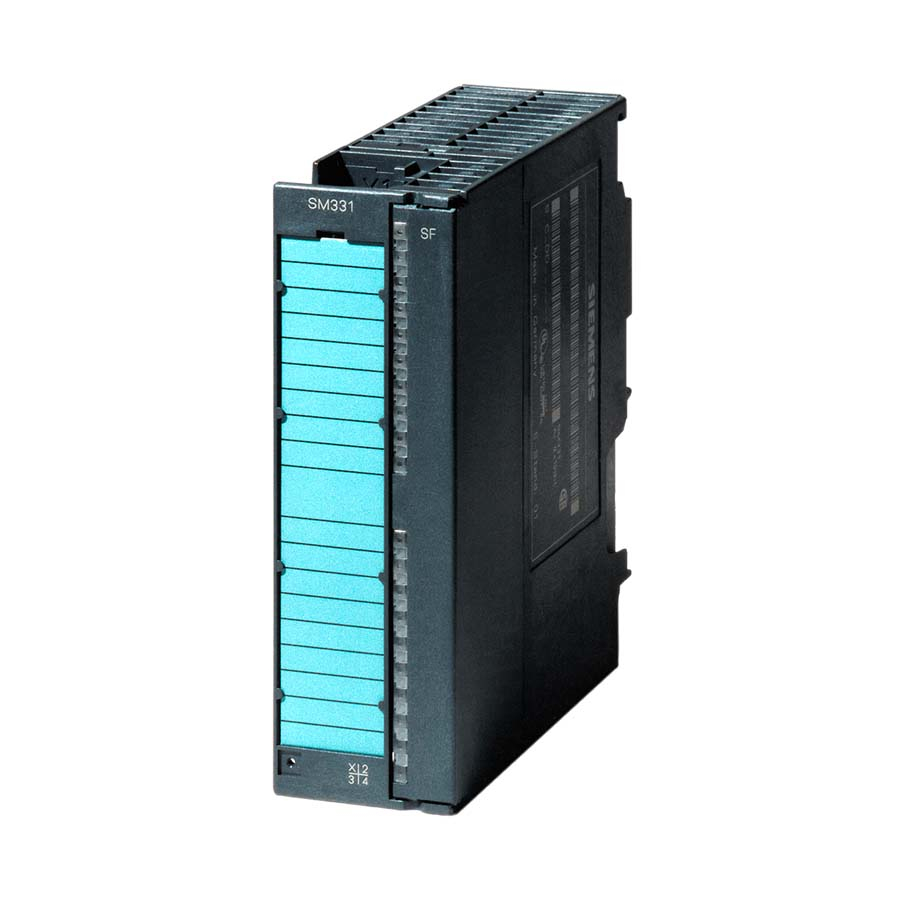

Product type : SIPLUS S7-300 SM331

8ae -25 ... +70°c With Conformal Coating Based On 6es7331-1kf02-0ab0. Optically Isolated, 8 Ai, 13 Bit Resolution, U/i/resistance/pt100, Ni100, Ni1000, Lg-ni1000, Ptc / Kty, 66 Ms Module Update, 1 X 40 Pin

Input current from backplane bus 5 V DC, max. : 90 mA
Power loss, typ. : 0.4 W
Number of analog inputs : 8
Isolation tested with 500 V DC
Connection method required front connector 40-pin

Dimensions (LxWxH) : 11.7cm x 4cm x 12.5 cm

Weight : 0.25 Kg

Shipping weight : 1.5 Kg
