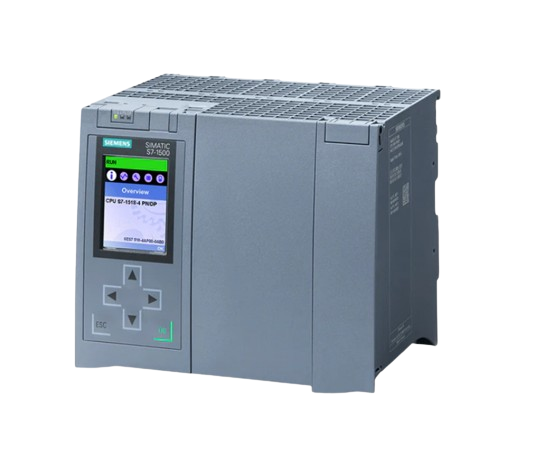

SIMATIC S7-1500(6ES7518-4AP00-0AB0),siemens

$10,320.30
$13,187.00
-$2,866.70
Quantity

Description

  • Estimated Lead Time : 1 - 10 Working days.

  • Manufacturer : Siemens

  • Product No. : 6ES7518-4AP00-0AB0

  • Product Type : CPU 1518-4 PN/DP

  • Firmware version : V2.9

  • Display : Screen diagonal - 6.1 cm

  • Supply voltage :

    • Rated value (DC) : 24 V

    • permissible range, lower limit (DC) : 19.2 V

    • permissible range, upper limit (DC) : 28.8 V

    • Reverse polarity protection : Yes

  • Input current :

    • Current consumption (rated value) : 1.55 A

    • Inrush current, max. : 2.4 A; Rated value

    • I²t : 0.02 A²·s

  • Number of IO modules : 16 384; max. number of modules / submodules

  • Number of subprocess images, max. : 32

  • Width : 175 mm

  • Height : 147 mm

  • Depth : 129 mm

  • Weight, approx. : 1988 g

  • Shipping Weight : 3 Kg
