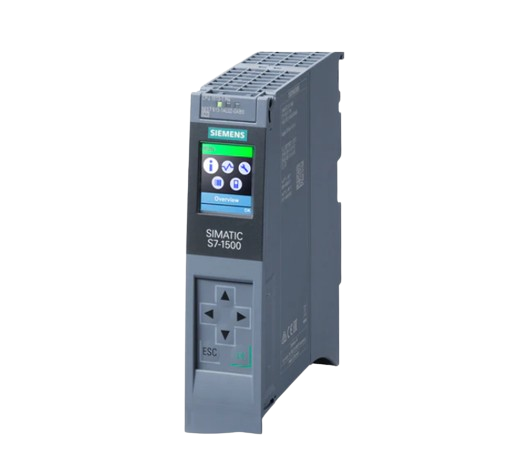

SIMATIC S7-1500(6ES7513-1AL02-0AB0),siemens

$1,608.30
$2,055.00
-$446.70
Quantity

Description

  • Estimated Lead Time : 1 - 10 Working days.

  • Manufacturer : Siemens

  • Product No. : 6ES7513-1AL02-0AB0

  • Product Type : CPU 1513-1 PN

  • Firmware version : V2.8

  • Display : Screen diagonal - 3.45 cm

  • Supply voltage :

    • Rated value (DC) : 24 V

    • permissible range, lower limit (DC) : 19.2 V

    • permissible range, upper limit (DC) : 28.8 V

    • Reverse polarity protection : Yes

  • Input current :

    • Current consumption (rated value) : 0.7 A

    • Current consumption, max. : 0.95 A

    • Inrush current, max. : 1.9 A; Rated value

    • I²t : 0.02 A²·s

  • Number of IO modules : 2 048; max. number of modules / submodules

  • Number of subprocess images, max. : 32

  • Width : 35 mm

  • Height : 147 mm

  • Depth : 129 mm

  • Weight, approx. : 405 g

  • Shipping Weight : 2 Kg
