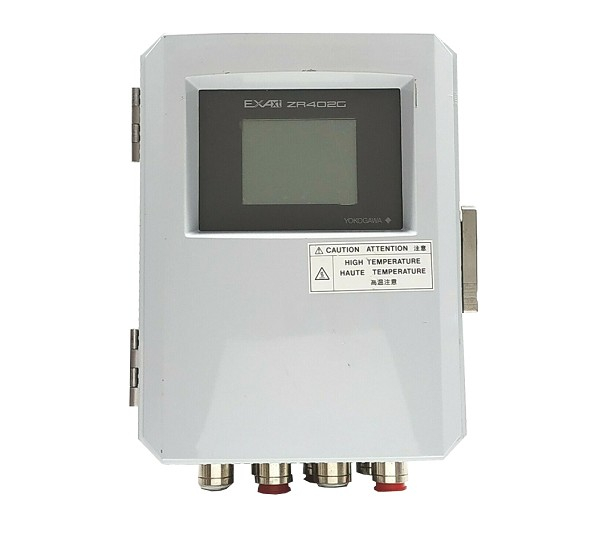

Separate type Zirconia Oxygen Analyzer, Converter(ZR402G-M-C-C-A),Yokogawa

$5,495.40
$7,021.00
-$1,525.60
Quantity
Sku : ZR402G-M-C-C-A
Weight : 6kg

Description

  • Estimated Lead Time : 8 - 10 weeks.
  • Manufacturer : Yokogawa
  • Product No. : ZR402G-M-C-C-A
  • Product type : Separate type Zirconia Oxygen Analyzer, Converter
  • M = M20x1.5
  • Display : C = Chinese
  • Instruction manual : C = Chinese
  • A = Always -A
  • Display: LCD display of size 320 by 240 dot with touchscreen.
  • Output Signal: 4 to 20 mA DC, two points (maximum load resistance 550 O )
  • Contact Output Signal: Four points (one is fail-safe, normally open)
  • Contact Input: Two points
  • Analog Input: One point (thermal input 4-20 mA)
  • Ambient Temperature: -20 to +55°C
  • Storage Temperature: -30 to +70°C
  • Ambient Humidity: 0 to 95 %RH (non-condensing)
  • Power Supply Voltage: Ratings; 100 to 240 V AC Acceptable range; 85 to 264 V AC
  • Power Consumption: Max. 300 W, approx. 100 W for ordinary use
  • Wiring Connection: G1/2, Pg 13.5, M20 × 1.5, 1/2 NPT (with plug), eight holes
  • Installation: Panel, wall or pipe mounting
  • Case: Aluminum alloy
  • Paint Color: Door; Silver gray (Munsell 3.2PB7.4/1.2) Case; Silver gray (Munsell 3.2PB7.4/1.2)
  • Finish: Polyurethane corrosion-resistance coating
  • Dimensions ( D x W x H ) : 22.80 cm x 13.63 cm x 28 cm
  • Weight : Approx. 6 kg
  • Shipping weight : 7.5 Kg
