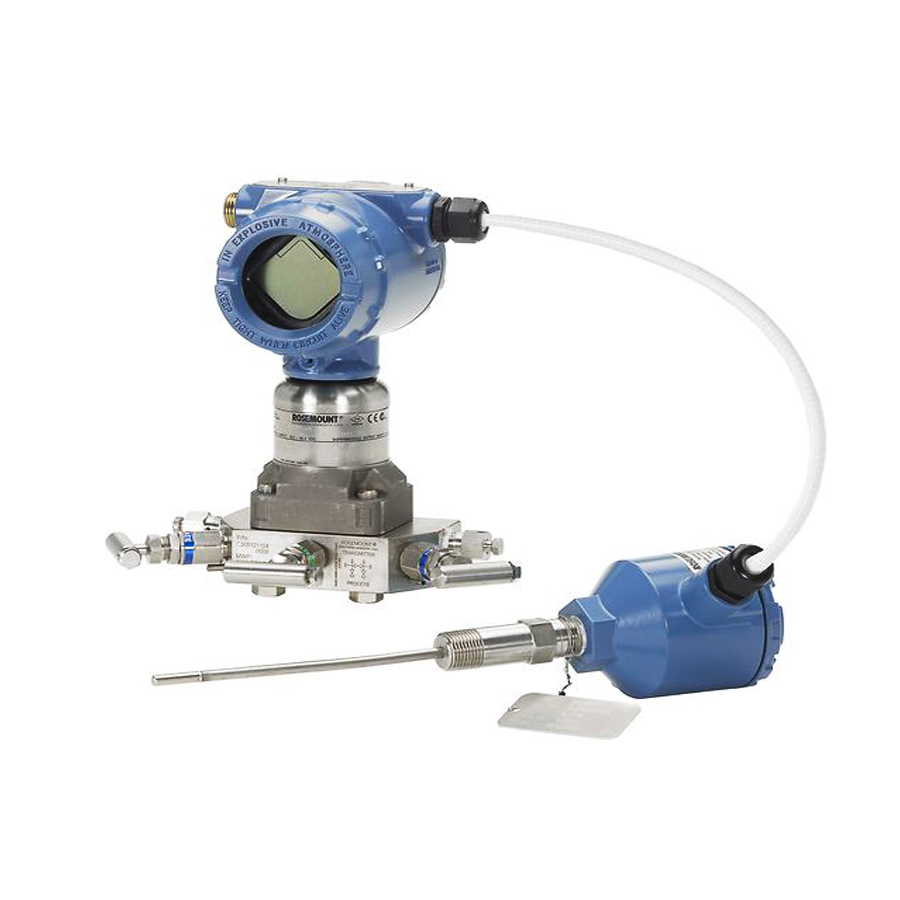

Scalable™ MultiVariable Transmitter(3051SMV5M13G4R2E11A1JC33I1L4M5Q4T1),rosemount

$6,072.30
$7,759.00
-$1,686.70
Quantity
Sku : 3051SMV5M13G4R2E11A1JC33I1L4M5Q4T1
Weight : 5.4kg

Description

  • Estimated Lead Time :6 - 8 weeks.
  • Manufacturer : Rosemount
  • Product No. : 3051SMV5M13G4R2E11A1JC33I1L4M5Q4T1
  • Product type :  Scalable™ MultiVariable Transmitter
  • Transmitter Type : 3051SMV = Scalable multivariable transmitter
  • Performance class(1) : 5 = Classic MV: 0.04% span DP accuracy, 100:1 rangedown, 15-year stability
  • Multivariable type : M = Measurement with fully compensated mass and energy(3) flow calculations
  • Measurement type : 1 = Differential pressure, static pressure, and temperature
  • Differential pressure range(4) : 3 = –1000 to 1000 inH2O (–2,48 to 2,48 bar)
  • Static pressure type : G = Gage
  • Static pressure range : 4 = Range 4. –14.2 to 3626 psig (–0,98 to 250,00 bar)
  • Temperature input : R = RTD input (type Pt 100, –328 to 1562 °F [–200 to 850 °C])
  • Isolating diaphragm : 2 = 316L SST
  • Process connection : E11 = Coplanar flange, ¼–18 NPT, Carbon steel, 316 SST
  • Transmitter output : A = 4–20 mA with digital signal based on HART protocol
  • Housing style : 1J = Plant web housing, SST, ½–14 NPT
  • RTD cable (RTD sensor must be ordered separately) : C33 = RTD input with 24 feet (7,32 m) of ATEX/IECEx Flameproof cable
  • Product certifications : I1 = ATEX Intrinsic Safety
  • Bolting material : L4 = Austenitic 316 SST bolts
  • Digital display : M5 = Plantweb LCD display
  • Calibration certification : Q4 = Calibration certificate
  • Transient protection : T1 = Transient terminal block
  • Weight : 5.4 Kg
  • Shipping Weight : 8 Kg
