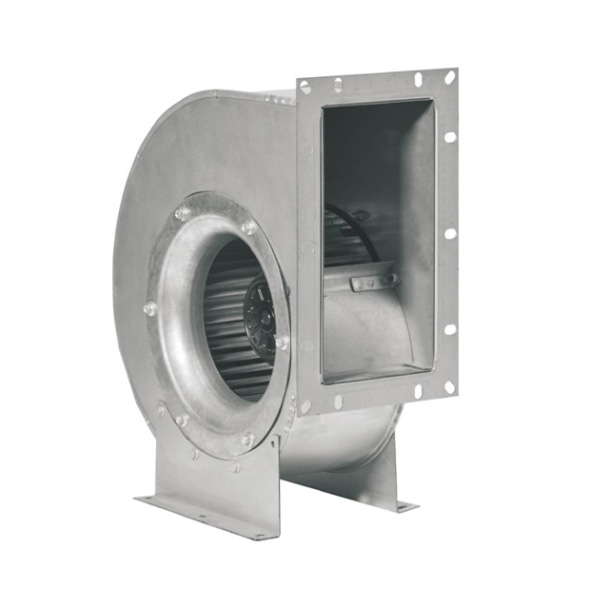

Q-6D355-GQ-R AC Forward Curved Centrifugal Fan For HVAC

6D355-GQ-R AC Forward Curved Centrifugal Fan For HVAC

$9,999.00
Quantity

Description

Key Advantages:

✔ Compact design with high airflow volume.

✔ Low noise at low speed.

✔ Simple and economical solution.

Custom Options:

✔ Housing shape (with or without).

✔ Motor speed/frequency.

✔ All nameplates, customer logos, cable lengths, and parameters can be customized.

Motor technology AC
Supply voltage 3P
Supply frequency 50 Hz
Rated voltage 230/400 VAC
Power input 1150 W
Current 4.0/2.3 A
Speed 900 r/min
Perm. amb. temp -25℃ ~ +70℃
Inlet type Single Inlet
Rotation Counter-clockwise (Seen from cable exit)
Protection class IP54
Insulation class F
Impeller material Galvanised sheet steel
Acoustic 80 dB(A)
Thermal Protector Can be configured as requirements
Housing Volute with support foot; With inlet ring;
