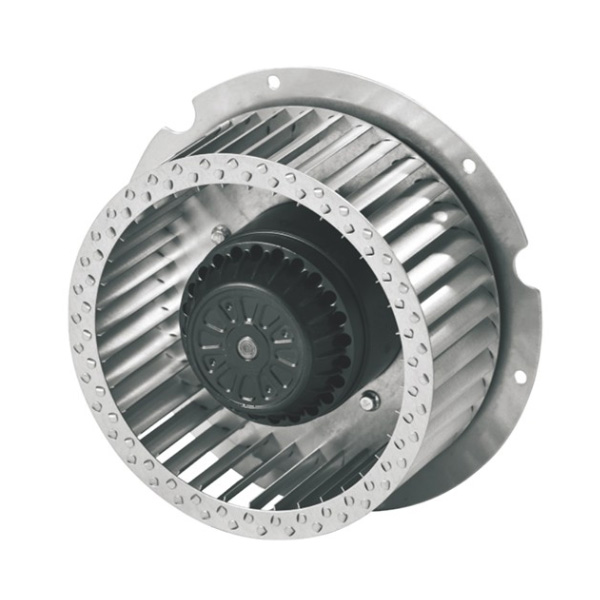

Q-4E225-GQ AC Forward Curved Centrifugal Fan For Elevator Ventilation

4E225-GQ AC Forward Curved Centrifugal Fan For Elevator Ventilation

$9,999.00
Quantity

Description

Key Advantages:

✔ Compact design with high airflow volume.

✔ Low noise at low speed.

✔ Simple and economical solution.

Custom Options:

✔ Housing shape (with or without).

✔ Motor speed/frequency.

✔ All nameplates, customer logos, cable lengths, and parameters can be customized.

Motor technology AC
Supply voltage 1P
Supply frequency 50 Hz
Rated voltage 230 VAC
Power input 510 W
Current 2.3 A
Speed 1320 r/min
Perm. amb. temp -25℃ ~ +50℃
Inlet type Single Inlet
Rotation Counter-clockwise (Seen from cable exit)
Protection class IP54
Insulation class F
Impeller material Galvanised sheet steel
Acoustic 80 dB(A)
Thermal Protector Can be configured as requirements
Capacitor 8 uF
Housing Without housing; With inlet ring;
