PT462E-7.5C-9/18(PT462E75C9182),dynisco

$1,866.60
$2,385.00
-$518.40
Quantity

Description

  • Estimated Lead Time : Usually ships in 1 - 10 working days.

  • Manufacturer : Dynisco

  • Product No. : PT462E-7.5C-9/18

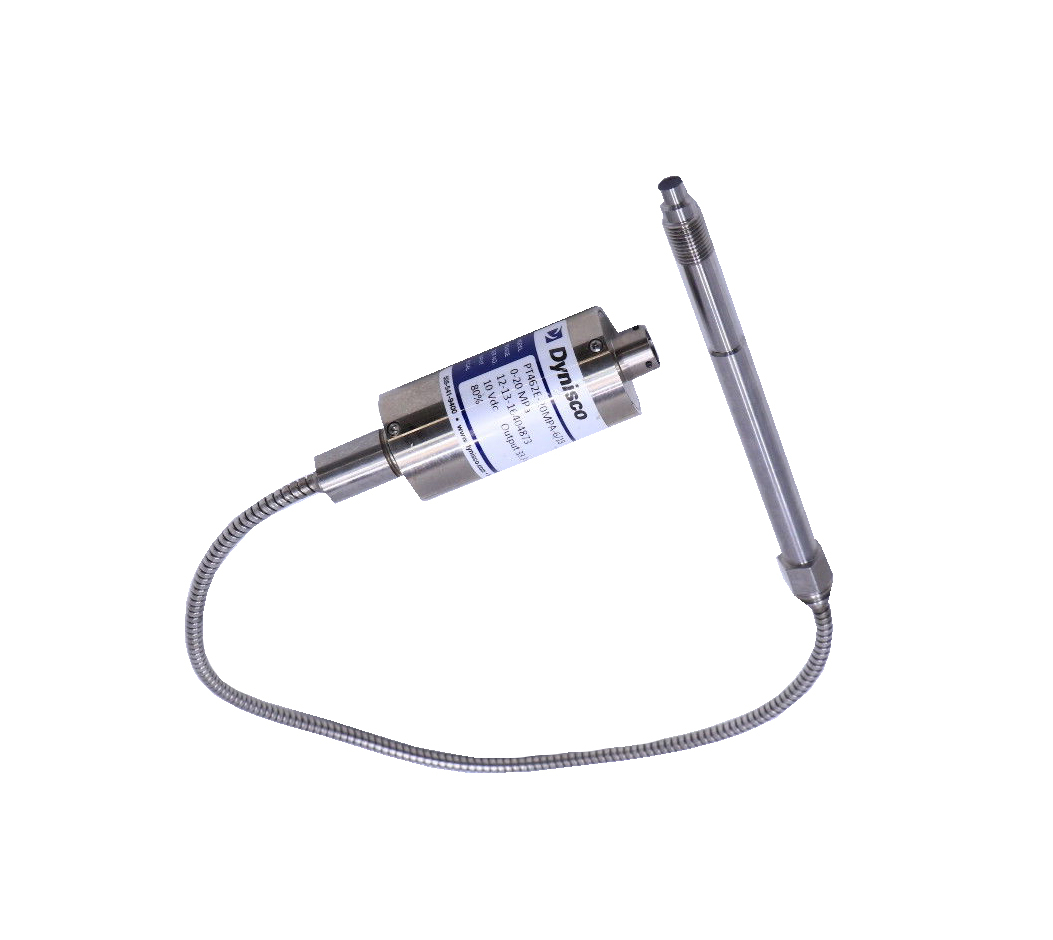

  • Product type : PT462E The Classic Flexible Stem Melt Pressure Transducer

  • Pressure Range (psi) : code 7.5C = 0 - 750

  • Rigid Stem : code 9 = length 9.

  • Flexible Stem : code 18 = length 18.

  • Accuracy : ±0.5% FSO

  • Repeatability : ±0.2% FSO

  • Mounting torque : 500 inch - lbs. maximum

  • Maximum pressure : 2 x full range or 35,000 psi (whichever is less)

  • Material in contact with pressure media : 15 - 5 PH stainless steel, DyMax™ coated

  • Excitation : 10 Vdc recommended, 12 Vdc maximum

  • Internal shunt calibration (R-Cal) : 80% FSO ±1.0%

  • Insulation resistance : 1,000 megohms at 50 Vdc

  • Zero balance : ±10% full scale

  • Full scale output : 3.33 mV/V ±2%

  • Shipping Weight : 2.5 Kg
