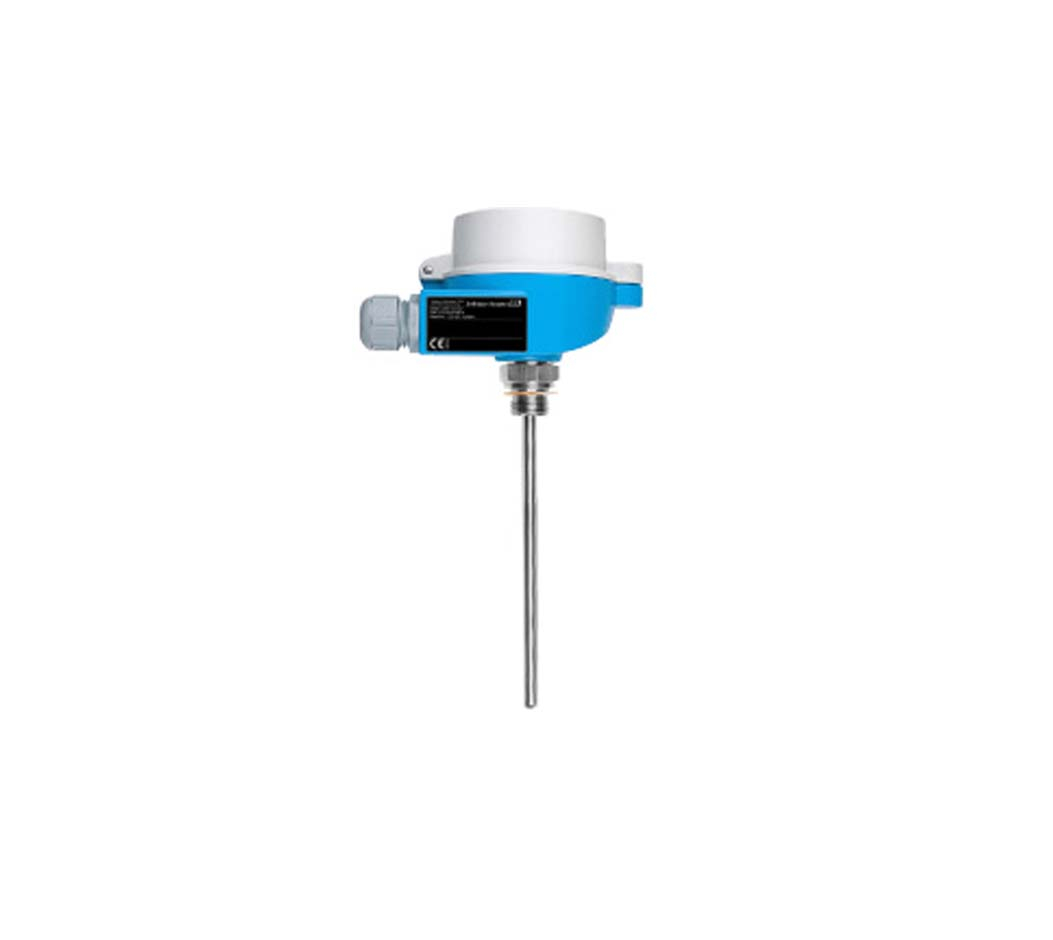

Protection Tube And Neck Tube(TR10-AFF3BHSJKA000),endress+hauser

$1,014.30
$1,296.00
-$281.70
Quantity

Description

  • Estimated Lead Time : 4 - 6 weeks.

  • Manufacturer : Endress+Hauser

  • Product No. : TR10-AFF3BHSJKA000

  • Product type : Protection tube and neck tube

  • A - Approval : Non-hazardous area

  • F - Head; Cable Entry : TA30A Alu+display, IP66/IP68; M20

  • F - Pipe Diameter; Material : 12 mm; 316Ti, DIN43772-2G/3G

  • 3 - Neck Length E : 145 mm, DIN43772-2G

  • BH - Process Connection : Thread G ½" A; 316Ti

  • S - Tip Shape : Straight

  • J - Immersion Length L : 400 mm

  • A - RTD, wire, meas. range, class, validity : 1x Pt100 WW; 3; -200/600 °C; A: -200/600 °C

  • 0 - Material Certificate : Not needed

  • 0 - Test Report : Not needed

  • 0 - Test/Calibration : Not needed

  • Shipping weight : approx. 4 Kg
