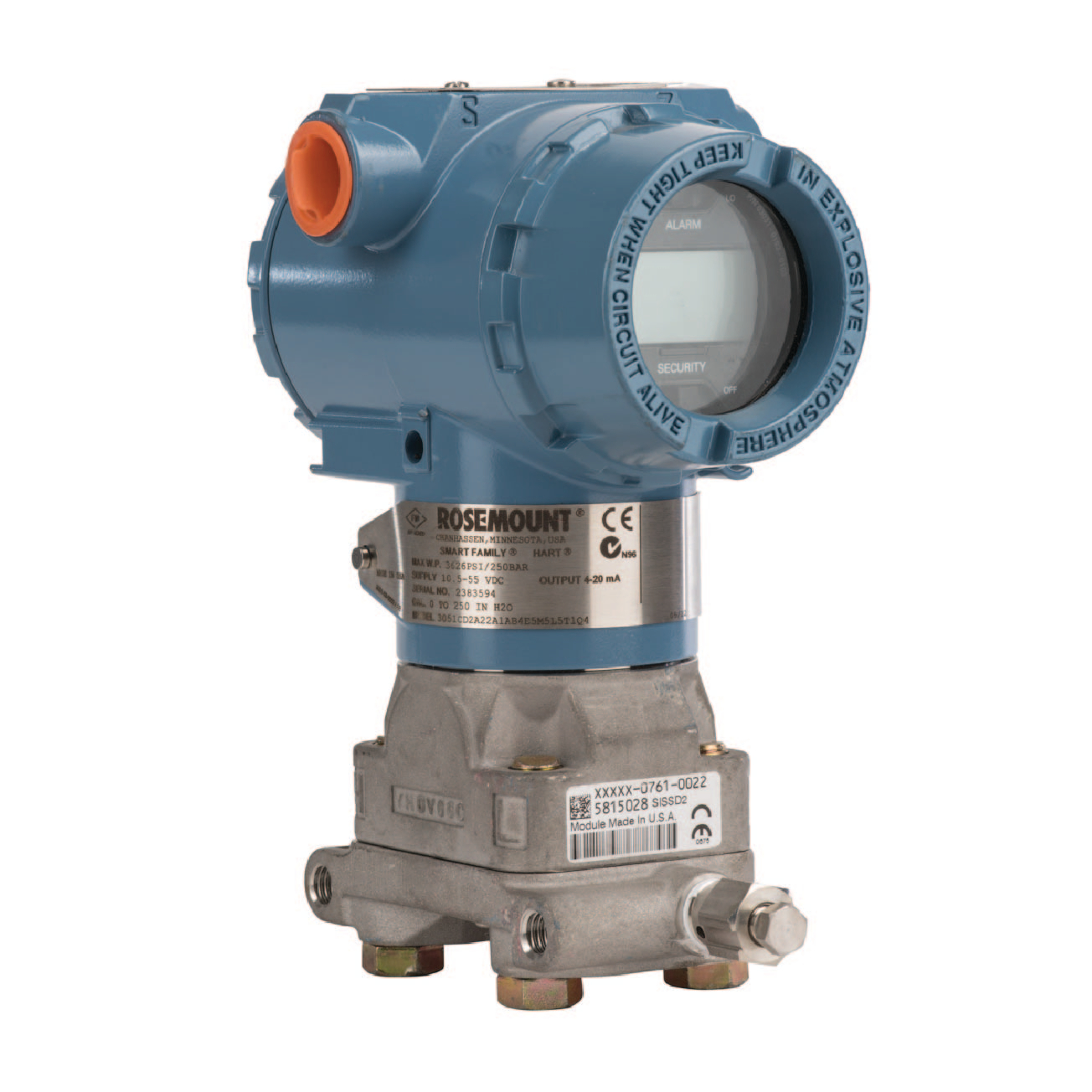

Pressure Transmitter(3051TA1A2B21JE2D4M5DOQ4Q8),rosemount

$1,315.80
$1,681.00
-$365.20
Quantity

Description

  • Estimated lead time :  4 - 6 Weeks

  • Manufacturer: Rosemount

  • Part Number: 3051TA1A2B21JE2D4M5DOQ4Q8

  • Series Model = 3051T : In-line Pressure Transmitter

  • Measurement type : A = Absolute

  • Pressure Range : 1 = -14.7 to 30 psi (-1.01 to 2.06 bar)

  • Process Connection style  = 2B : 1/2-14 NPT female (range 0-5 only)

  • Isolating Diaphragm : 2 -

    • Material : 316L stainless steel

    • Process connection wetted part materials : 316L stainless steel

  • Sensor fill fluid : 1 = Silicone

  • Housing material : J -

    • Material : J

    • Conduit entry size: 1/2–14 NPT

  • Product Certification = E2 : Brazil Flameproof

  • Configuration buttons = D4 : Analog zero and span

  • Display and interface options = M5 : LCD display

  • Plantweb diagnostic functionality = DO : Loop Integrity

  • Diagnostic Calibration certification =  Q4

  • Material traceability certification = Q8 : Material traceability certification per EN 10204 3.1.B

  • Shipping weight: 5.5 Kg
