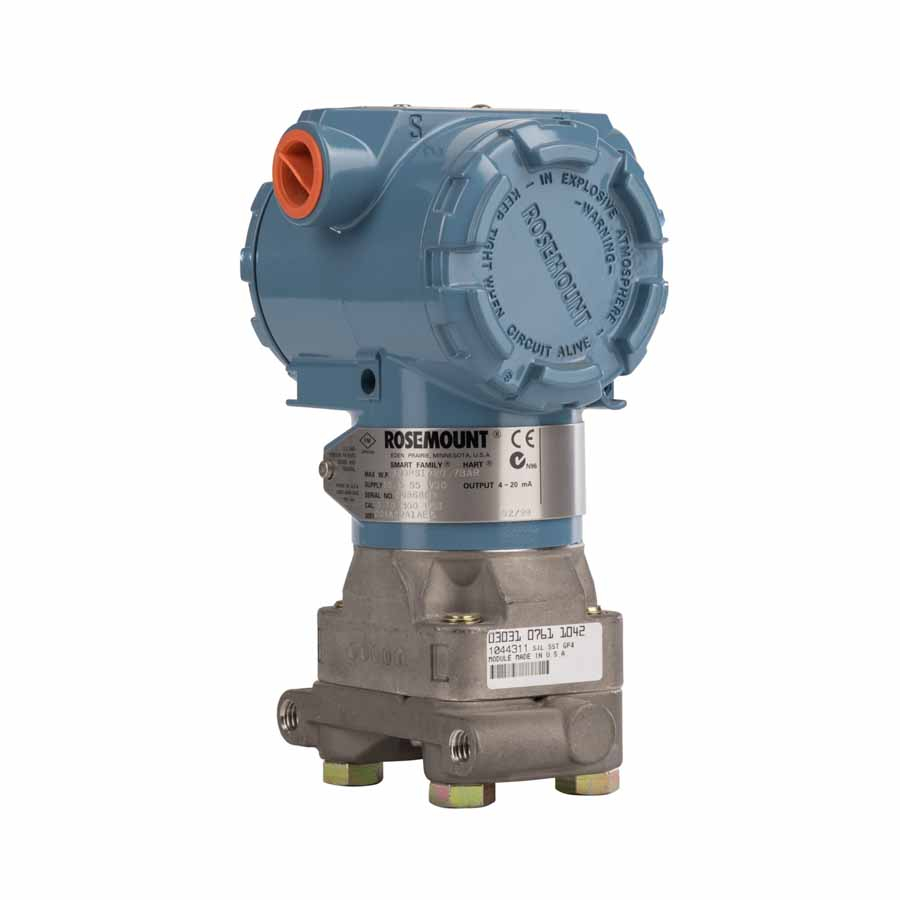

Pressure Transmitter(3051CD2A22A1AB4I1M5Q4Q8J1),rosemount

$968.40
$1,237.00
-$268.60
Quantity

Description

  • Estimated Lead Time : 8 - 10 weeks.

  • Manufacturer : Rosemount

  • Product No. : 3051CD2A22A1AB4I1M5Q4Q8J1

  • Product type : Pressure Transmitter

  • Measurement type : D = Differential

  • Pressure range : 2 = –250 to 250 inH2O (–621.60 to 621.60 mbar)

  • Transmitter output: A = 4–20 mA with digital signal based on HART® Protocol

  • Materials of construction : 2 = Process flange type Coplanar, Flange material Stainless steel, Drain/vent SST

  • Isolating diaphragm : 2 = 316L SST

  • O-ring : A = Glass-filled PTFE

  • Sensor fill fluid : 1 = Silicone

  • Housing material ,Conduit entry size : A = Aluminum 1/2–14 NPT

  • Mounting bracket : B4 =  Coplanar flange bracket, all SST, 2-in. pipe and panel

  • Product certifications : I1 = ATEX Intrinsic Safety and Dust

  • Display and interface options : M5 = LCD display

  • Calibration certificate : Q4 = Calibration certificate

  • Material traceability certification : Q8 = Material traceability certification per EN 10204 3.1

  • Country certification : J1 = Canadian registration

  • Shipping weight : 8 Kg
