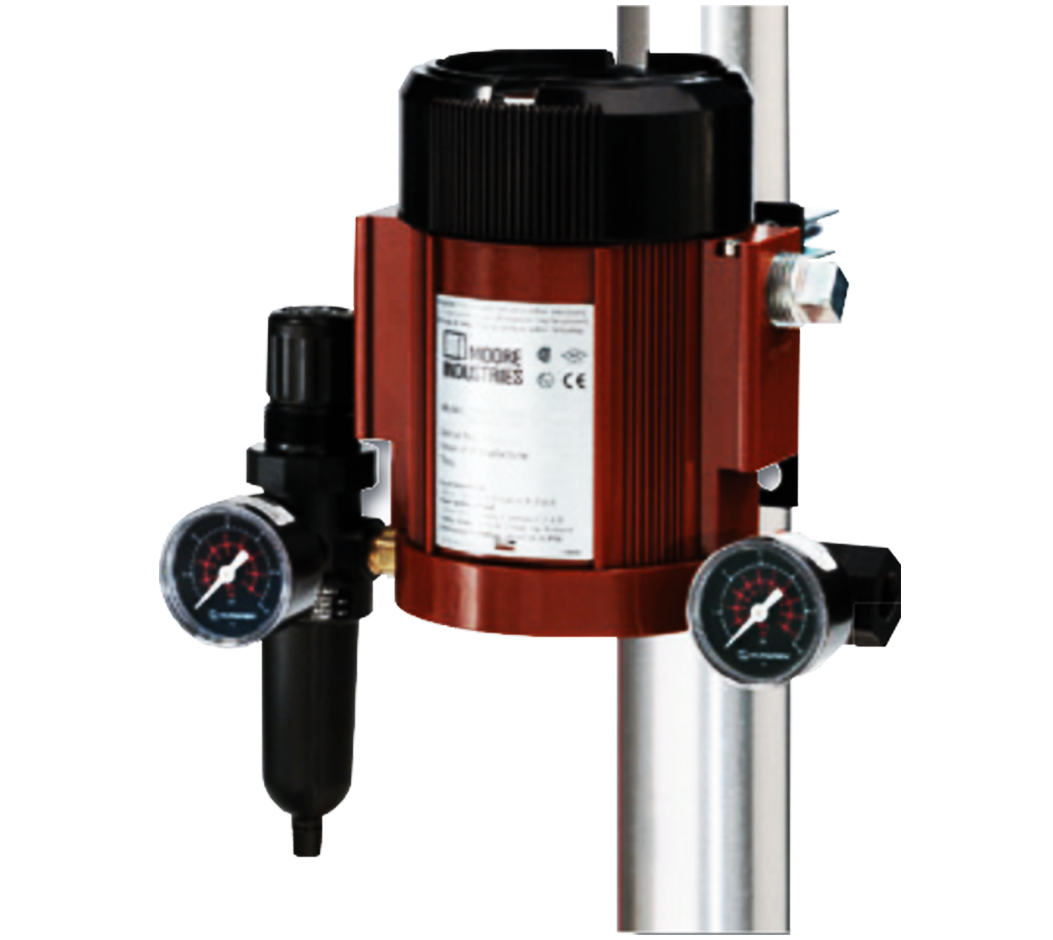

Moore explosion proof current to pressure transmitter
Accuracy: <±0.25% of span including the combined effect of linearity, hysteresis and repeatability (between 0 and 3psig output, error will not exceed ±1.0% of span)
Stability: Not to degrade from stated accuracy for six months
Step Response: <0.2 seconds into 100ml load (6 in3) from 10% to 90% ofspan; Not guaranteed below 3psig output
Supply Pressure Effect: Negligible from 20-40psig,steady pressure
Air Capacity:5.0SCFM minimum (20psig supply, 0psig output)
Relief Capacity: 2.5SCFM minimum (15psig output)
Air Supply: Instrument air only, 20-40psig.
Gas Supply with -NG1 or-NG2 Option: 17-40psig.Same cleanliness as instrument air. H2 S not to exceed 20ppm
Maximum Input: 80psig without damage for units with output pressure rating of >15psig; 45psig without damage for units with output press 15psig
Voltage Drop: 5V, maximum
Weight IPX2: 2.4kg (5.3 lbs)
Air Consumption (Dead-ended): At 3-15psig output 20psig supply, average steady state consumption* of 4.7SCFH (min 4.2SCFH@ 3psig, max 5.2SCFH@15psig); 40psig supply, max 9SCFH @15psig output;40psig supply, max 10SCFH @30psig output
Natural Gas Consumption (Dead-ended): At 3-15psig output 20psig supply, average steady state consumption* of 5.7SCFH,(min 5.1SCFH@ 3psig, max 6.2SCFH@15psig);17psig supply, max 5.9SCFH @15psig output; 40psig supply, max 12SCFH @30psig output;
Mounting Position Effect:Negligible, unit can be mounted in any position; refer to user manual for special conditions of use with natural gas supply or outdoor environments.
Operating & Storage Range:-40°C to +85°C(-40°F to +185°F)
Ambient Temperature Effect: <±0.025% ofspan/°C, maximum from-20°C to 80°C;<±0.1% of span/°C,maximum
RFI/EMI Effect:<±0.25% of span change at in fi eld strengths of 10V/m@ frequencies of 20-1000MHz
