Description
Estimated Lead Time : 10 - 14 weeks.
Manufacturer : Hydac
Product No : HDA 4820-A-250-424

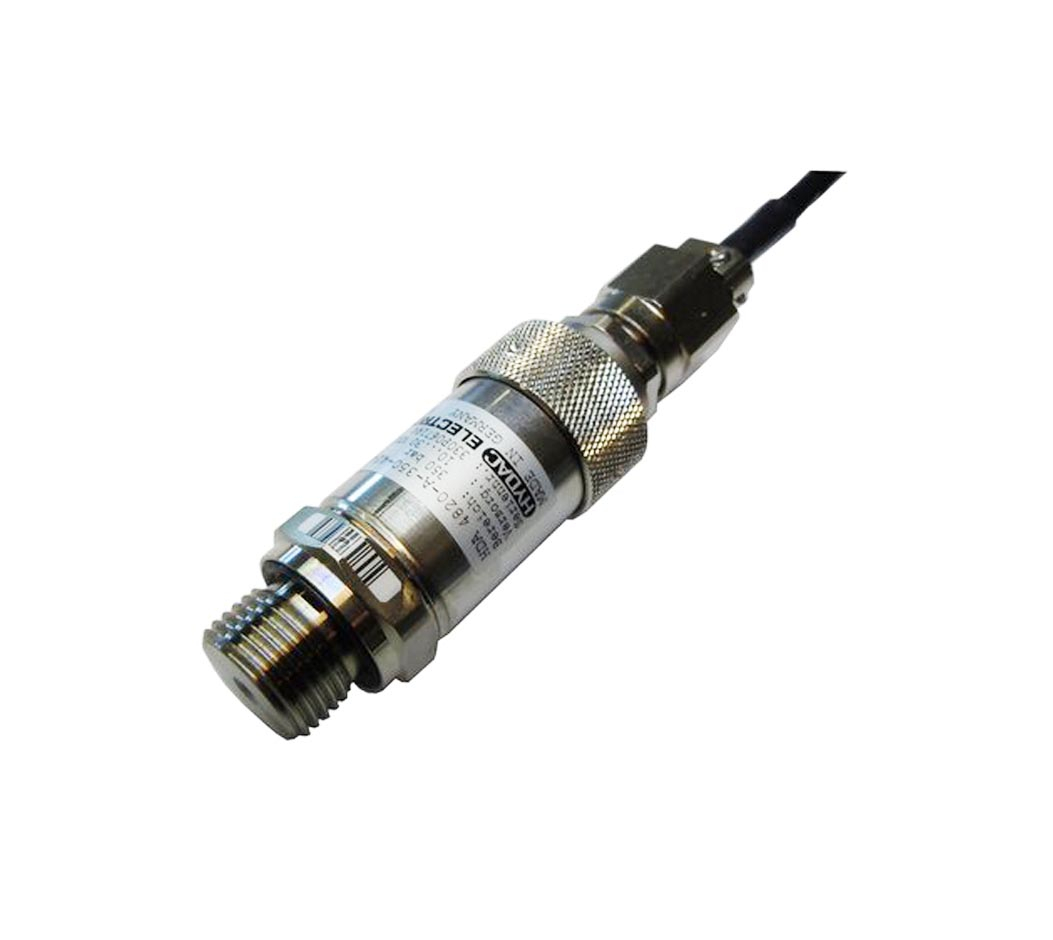

Product type : Pressure Transmitter HDA 4800 for Iron and Steelworks
Mechanical connection : 2 = G 1/2 A ISO 1179-2 (male)
Electrical connection : 0 = jacketed cable
Output signal : A = 4 .. 20 mA, 2-conductor
Measuring ranges in bar : 0250 (only with mech. connection G1/2")
Modification number : 424 = iron and steel works
Supply voltage when applied acc. to UL specifi cations : 10 .. 30 V DC 2-conductor / 3-conductor - limited energy - acc. to 9.3 UL 61010; Class 2; UL 1310/1585; LPS UL 60950
Current consumption : = 25 mA
Mechanical connection : G 1/4A ISO 1179-2 with 0.5 mm orifi ce, G 1/2A ISO 1179-2 with 0.5 mm orifi ce
