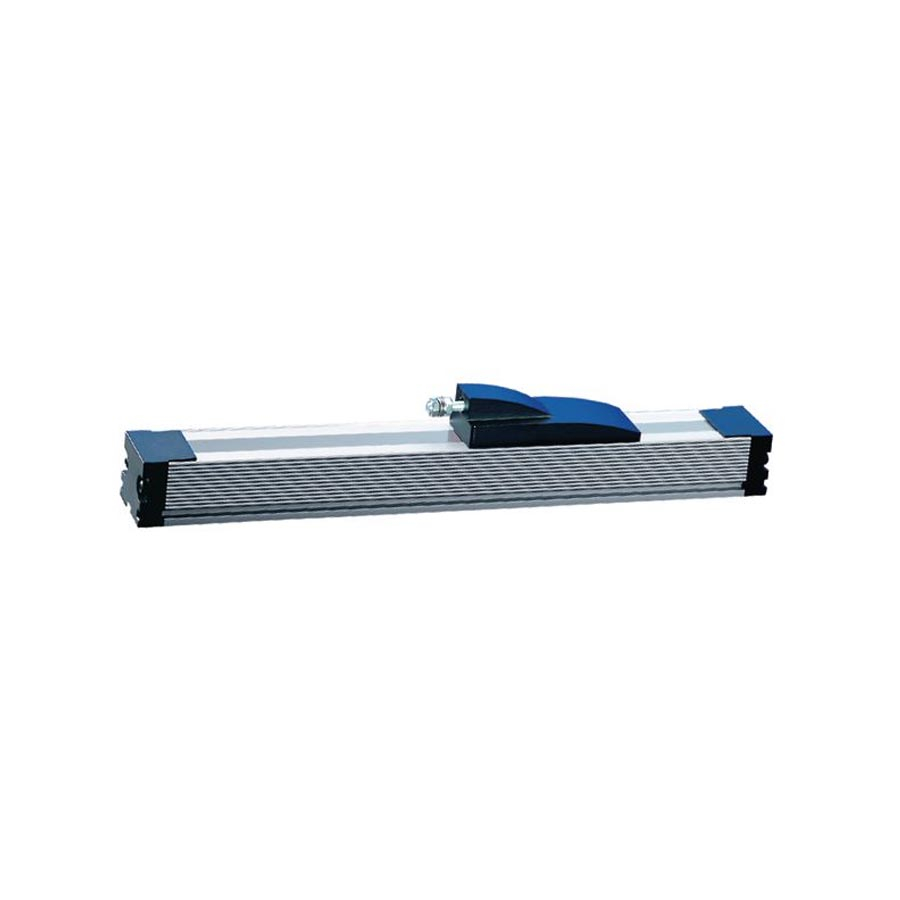

Position Transducers potentiometric(TLH-0500),novotechnik

$183.60
$235.00
-$51.40
Quantity

Description

  • Estimated Lead Time : 1 - 10 working days.

  • Manufacturer : Novotechnik

  • Product No. : TLH-0500

  • Product Type : Position Transducers potentiometric

  • Defined electrical range : 500 mm

  • Electrical stroke : 508 mm

  • Nominal resistance : 5 kΩ

  • Resistance tolerance : 20 ±%

  • Independent linearity : 0.05 ±%

  • Repeatability : 0.01 mm

  • Recommended operating wiper current : < 1 µA

  • Maximum permissible applied voltage : 42 V

  • Effective temperature coefficient of the output-to-applied voltage ratio : typical 5 ppm/K

  • Insulation resistance (500 VDC) : > 10 MΩ

  • Dielectric strength (500 VAC, 50 Hz) < 100 : µA

  • Shipping Weight : 3 Kg
