Description
Estimated Lead Time: 4-8 weeks
Manufacturer: Schmersal
Product features:
3 cable entries M 20 x 1.5
Thermoplastic enclosure
Double-insulated
Long life
52 mm x 75 mm x 30 mm
Universal coding
Large wiring compartment
High level of contact reliability with low voltages and currents
Slotted holes for adjustment, circular holes for location
Insensitive to soiling
Ordering data

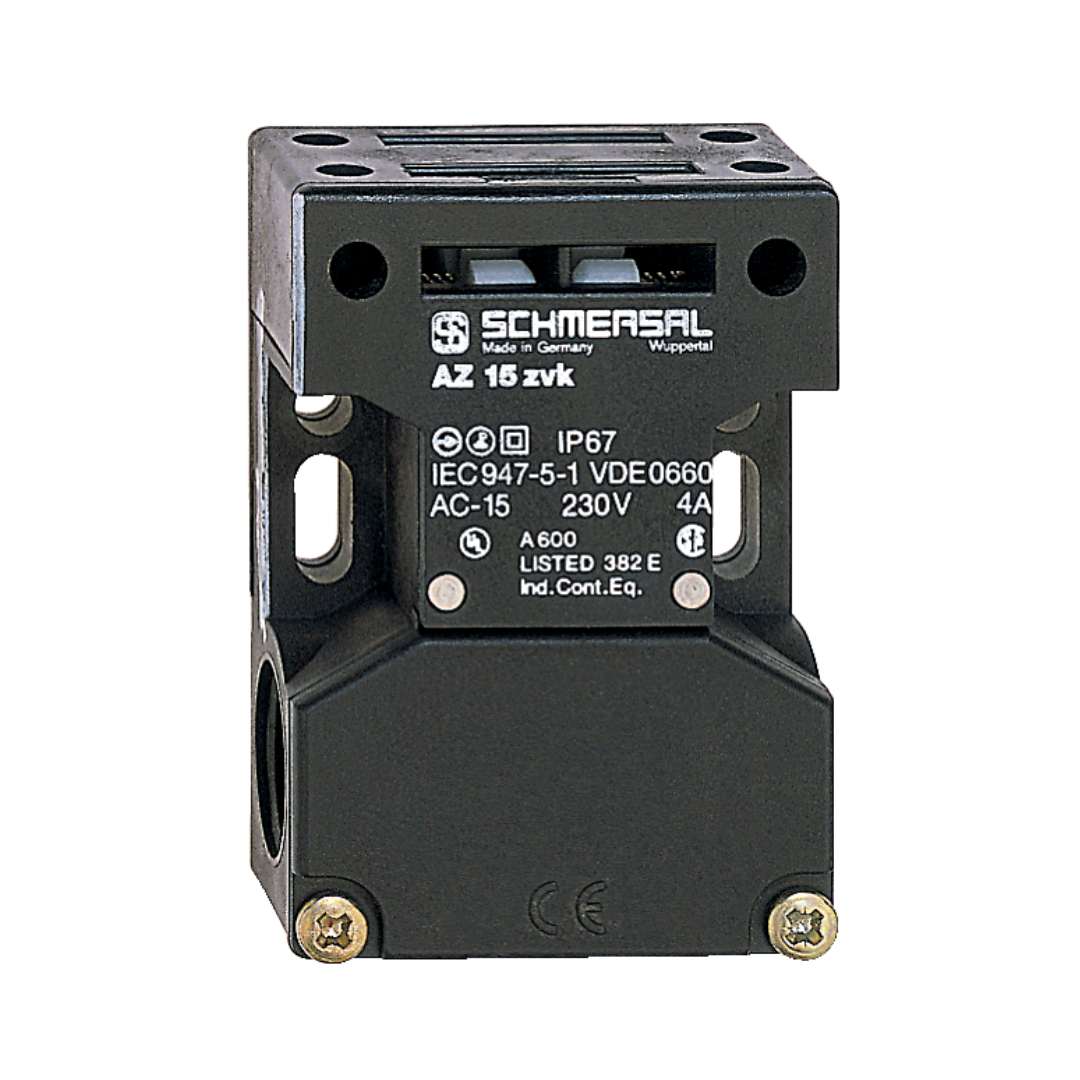

Product type description: AZ 15 ZVRK-M20-1637
Article number (order number): 101173064
EAN (European Article Number): 4030661301976
Approvals-Standards
Certificates:
TÜV
cULus
CCC
General data
Standards:
EN ISO 13849-1
EN ISO 14119
EN IEC 60947-5-1
Coding level according to EN ISO 14119: Low
Working principle: electromechanical
Enclosure material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight: 70 g
General data-Features
Suitable for elevators: Yes
Number of cable glands: 3
Number of safety contacts: 1
Safety classification
Standards: EN ISO 13849-1
Mission time: 20 Year(s)
Safety classification - Safety outputs
B10D Normally-closed contact (NC): 2,000,000 Operations
Mechanical data
Mechanical life, minimum: 1,000,000 Operations
Latching force: 30 N
Positive break travel: 8 mm
Positive break force per NC contact, minimum: 10 N
Actuating speed, maximum: 2 m/s
Mounting: Screws
Type of the fixing screws: 2x M6
Mechanical data - Connection technique
Cable entry: 3 x M20 x 1,5
Termination: Screw terminals
Cable section, minimum: 0.25 mm²
Cable section, maximum: 2.5 mm²
Note (Cable section): All indications including the conductor ferrules.
Mechanical data - Dimensions
Length of sensor: 30 mm
Width of sensor: 52 mm
Height of sensor: 75 mm
Ambient conditions
Degree of protection: IP67
Ambient temperature: -30 ... +80 °C
Storage and transport temperature, minimum: -40 °C
Storage and transport temperature, maximum: +85 °C
Permissible installation altitude above sea level, maximum: 2,000 m
Ambient conditions - Insulation values
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 6 kV
Overvoltage category: III
Degree of pollution: 3
Electrical data
Thermal test current: 10 A
Required rated short-circuit current: 1,000 A
Switching element: Opener (NC)
Switching principle: slow action, positive break NC contact
Switching frequency: 4,000 /h
Material of the contacts, electrical: Gold-plated silver (AgNi 15 + Au 0,3µm)
Electrical data - Safety contacts
Voltage, Utilisation category AC-15: 230 VAC
Current, Utilisation category AC-15: 4 A
Voltage, Utilisation category DC-13: 24 VDC
Current, Utilisation category DC-13: 4 A
Shipping Weight: 1Kg
