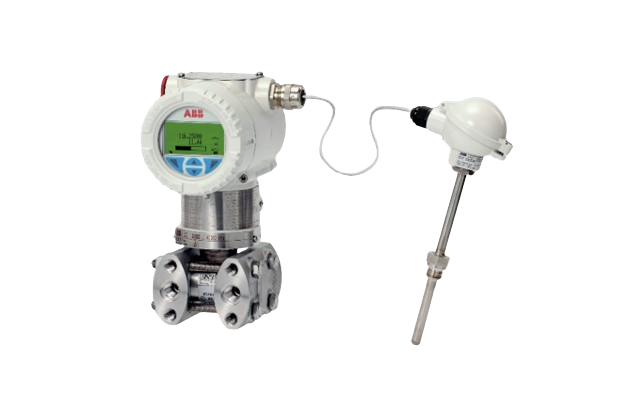

Multivariable transmitter for mass flow and level(266CSH.C.2.K.A.6.J.1-...L5..M1.T1.......U8),abb

$4,956.30
$6,333.00
-$1,376.70
Quantity

Description

  • Estimated Lead Time : 16 - 18 Weeks.

  • Manufacturer : ABB

  • Product No : 266CSH.C.2.K.A.6.J.1-...L5..M1.T1.......U8

  • Product type : Multivariable transmitter for mass flow and level, base accuracy 0.075 %

  • Sensor Span Limits : C = 0.2 and 6 kPa (2 and 60 mbar / 0.8 and 24 in H2O)

  • Maximum Working Pressure : 2 = 0 and 2 MPa / 0 and 20 bar / 0 and 290 psi

  • Diaphragm Material / Fill Fluid : K = Hastelloy C-276 / Silicone oil (NACE)

  • Process Flanges and Adapters Material / Connection : A = AISI 316L SST (1.4404 / 1.4408) / ¼-18 NPT female direct / (horizontal connection) (NACE)

  • Bolts Material / Gaskets Material : 6 = AISI 316L SST (NACE - non exposed) / Perbunan

  • Integral LCD : L5 = TTG (Through The Glass) integral digital LCD display

  • Label and Tag Language : T1 = German

  • Connector : U8 = With cable gland M20 × 1.5

  • Weight : 4.5 Kg

  • Shipping weight : 6 Kg
