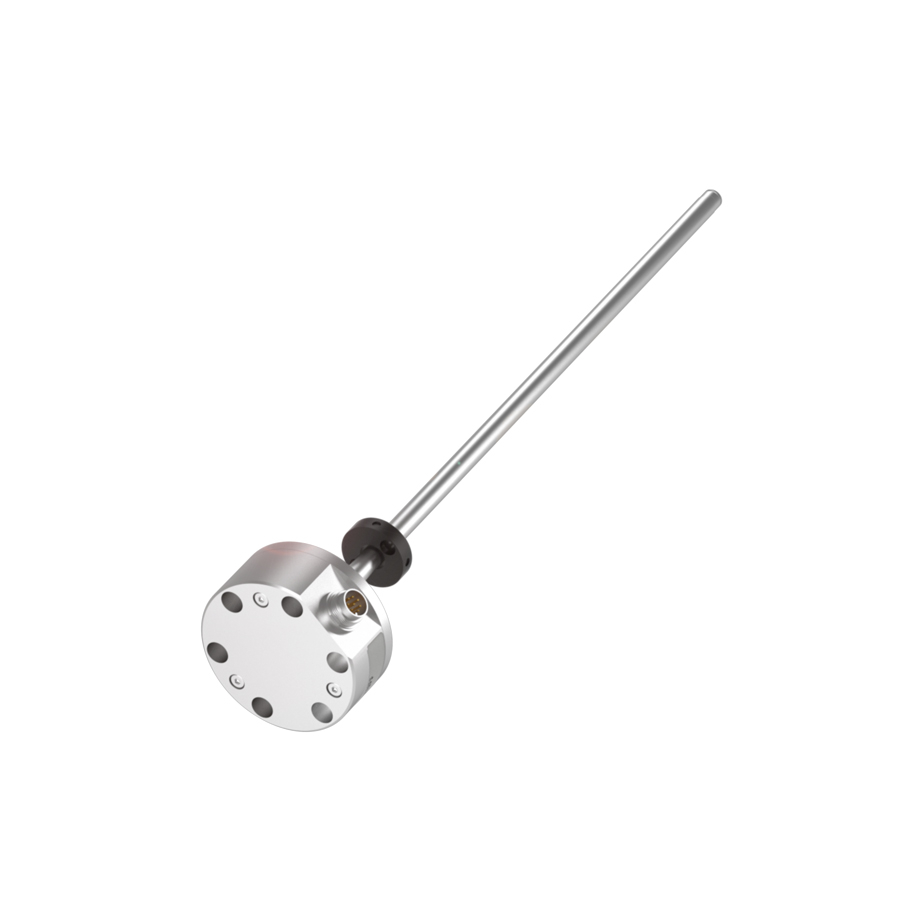

Micropulse Transducer(BTL7-C500-M0100-B-S32),balluff

$1,280.70
$1,637.00
-$356.30
Quantity

Description

  • Estimated Lead Time : 12-18 weeks.
  • Manufacturer : Balluff
  • Product No. : BTL7-C500-M0100-B-S32
  • Product Type : Micropulse Transducer
  • Interface : C - Analog interface, current output 0 to 20 mA
  • Supply Voltage : 5 - 10 to 30 V DC
  • Output Gradient : 00 - Rising (e.g. C_00 = 0 to 20 mA)
  • Nominal Stroke : M0100 - Metric specification in mm, nominal length 100 mm
  • Rod Version, fastening : B - Metric mounting thread M18x1.5, O-ring, rod diameter 10.2 mm
  • Electrical Connection : S32 - 8-pin, M16 plug per IEC 130-9
  • Shipping Weight : 3 kg
