Description
-
Estimated Lead Time : 12-18 weeks.
-
Manufacturer: Balluff
-
Product no : BTL5-E10-MO135B-S32
-

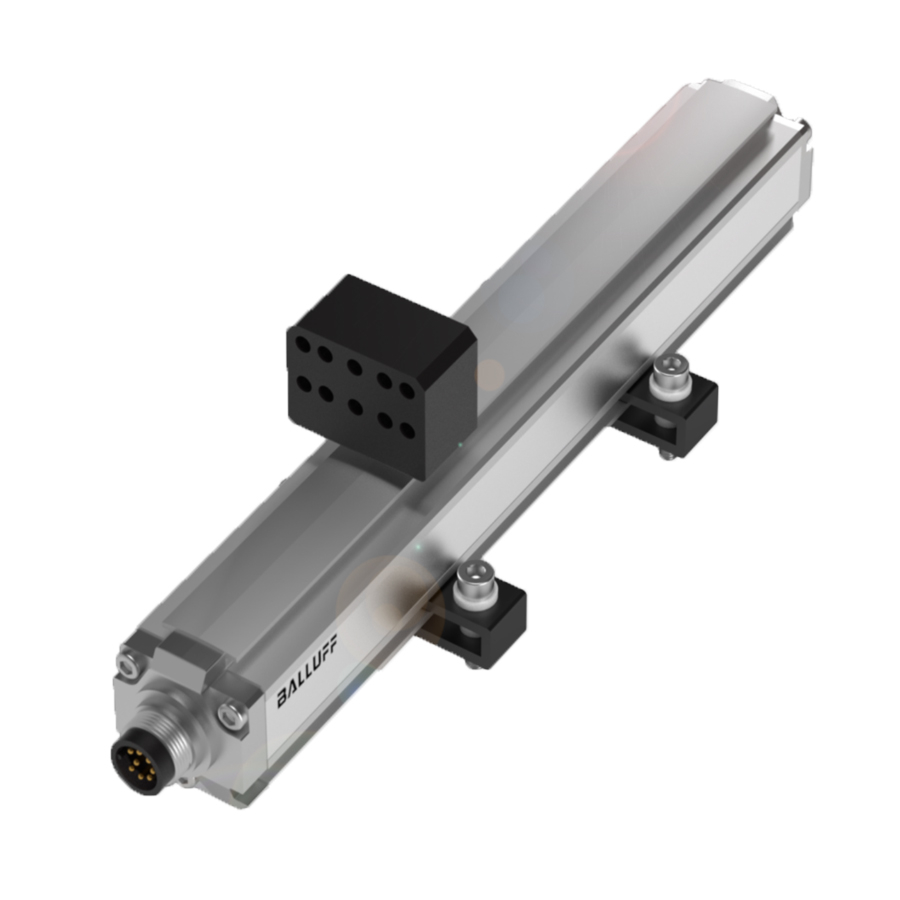

Product type : Micropulse Transducer in a Profile Housing
-
Accuracy : 24 V DC and room temperature, with a nominal length of 500 mm in conjunction with the BTL5-P-3800-2, BTL5-P-4500-1, BTL5-P-5500-2, BTL6-A-3800-2, BTL6-A-3801-2, BTL5-F-2814-1S, BTL5-T-2814-1S, BTL5-M-2814-1S or BTL5-N-2814-1S magnet.
-
Resolution : BTL5-C/E... = ≤ ±0.16 µA
-
Voltage, stabilized : BTL5-_1... = 20 to 28 V DC
-
Output : BTL5-E…
-
Output current : 4…20/20...4 mA
-
Load resistance : ≤ 500 ohms
-
-
Micropulse transducer : BTL5
-
Interface : E = Analog interface, current output 4…20 mA/20...4 mA
-
Supply voltage : 1 = 24 V DC
-
Output gradient : 0 = Rising : only C and E (e.g. C_0 = 0...20 mA)
-
Electrical connection : S32 = 8-pin, M16 plug per IEC 130-9
-
Weight : 1.4 Kg
-
Shipping Weight : 7 Kg
