Description
Discontinued. No replacement.
Manufacturer : Honeywell
Product No. : MCT404-XA-01-UM

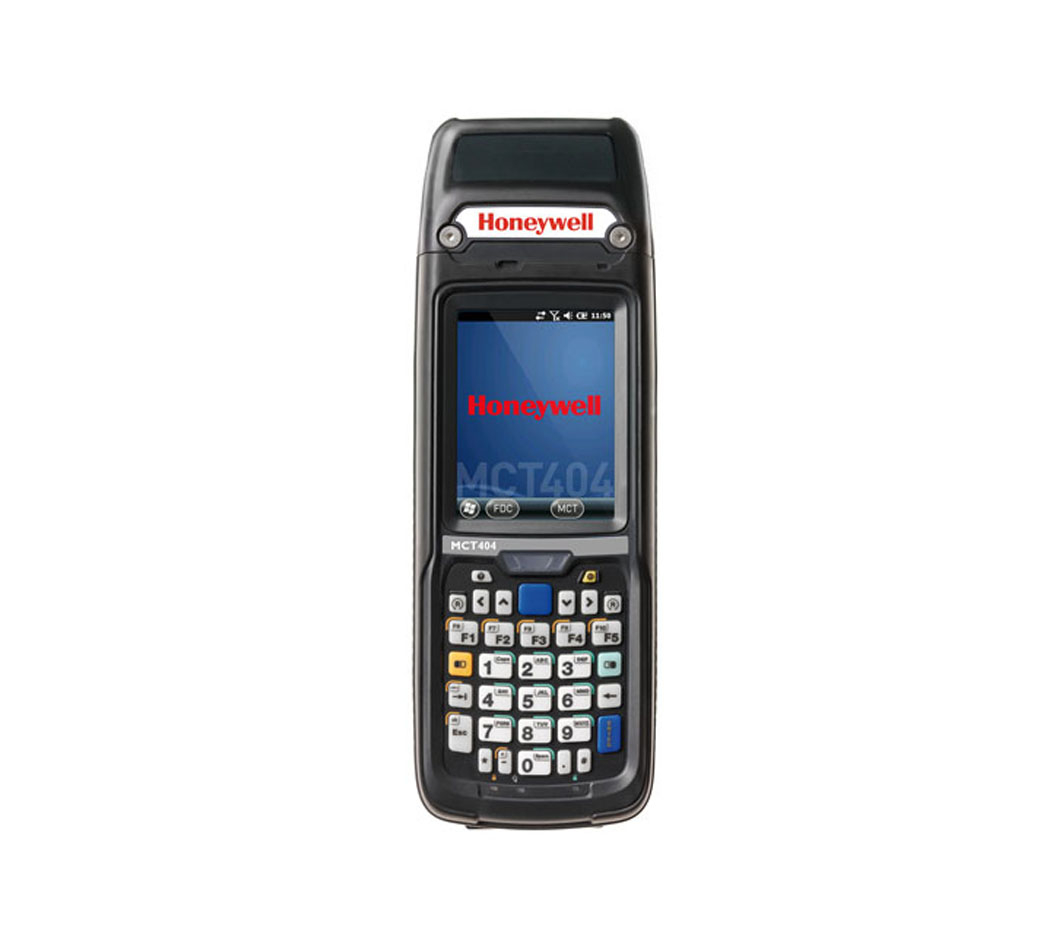

Product type : MC Toolkit Multiple Communication Configurator
This MC Toolkit version comes complete with one secured stylus pen, Hand strap, integrated HART/DE modem, 2GB SD Card,IrDA Port, Numeric Key Pad, 4' transmitter connector cable set and manuals on a CD-rom.
XA = Location Type : Zone 1 Div 1, Approval Body : ATEX, Approval Type : Intrinsically Safe Dust Ignition Proof, Location or Classification : II 2 G Ex ia IIC Gb, II 2 D Ex ia IIIC T135oC Db.
AC Power Options : 01 = Docking station with Charger Adapter,USB Interface cable and power cord - US
Processor (OMAP Multi Core Processor 1 GHZ)
Memory and Storage : 512MB RAM, 1GB Flash Memory, Customer accessible microSD slot for removable memory cards up to 32 GB.
Operating System : Windows Embedded Handheld 6.5.3
Display : 3.5” VGA transmissive TFT-LCD touch screen display color with LED backlight 640x480 pixels, 64K color, Ambient Light sensor, Highly durable due to Gorilla Glass
Interfaces : USB – Full speed 2.0 client allowing connectivity between docking station and the host PC using USB cable; IrDA, Wi-Fi, Bluetooth
Operating Temperature : -10 to +50°C (+14 to +122°F)
Storage Temperature : -20 to +60°C (-4 to +140°F)
Operating Humidity : 10 to 90% RH (Check with ECOM)
Memory : 2 GB Industrial grade standard micro SD card. (includes all HART registered device descriptions). MC Toolkit software, including FDC 2.X and HART DD files, are loaded on flash memory card. The flash memory card in the MCT404 is removable.
