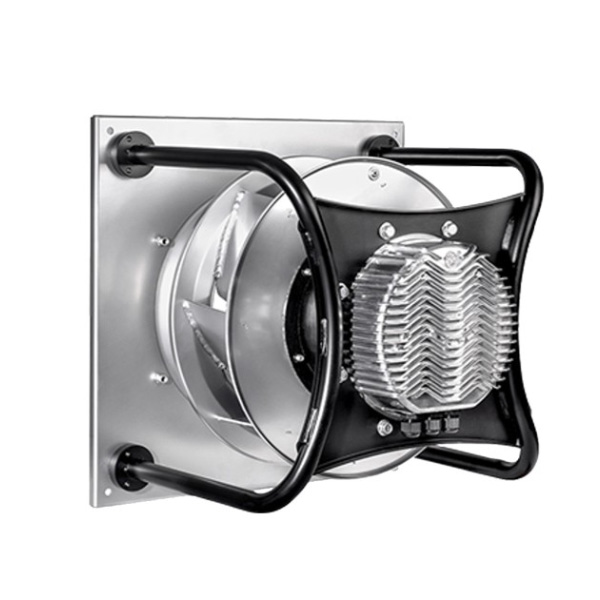

LQ-8E310-PLHDAL3 EC Radial Plug Fan For Air Handling Unit

BEF(K)8E310-PLHDAL3 EC Radial Plug Fan For Air Handling Unit

$9,999.00
Quantity

Description

Key Advantages:

✔ According to the principles of aerodynamics, the impeller design is optimized to make it more efficient and energy-saving.

✔ 0~10VDC/PWM control signal or MODBUS stepless speed control.

✔ Smooth, uniform outlet airflow.

Custom Options:

✔ Impeller material optional: aluminum-magnesium alloy/plastic.

✔ All nameplates, customer logos, cable lengths, and parameters can be customized.

Motor technology EC
Supply voltage 1P, 200~277V
Supply frequency 50/60 Hz
Rated voltage 230 VAC
Power input 1375 W
Current 9.3 A
Speed 2800 r/min
Perm. amb. temp -25℃ ~ +50℃
Inlet type Single Inlet
Rotation Counter-clockwise (Seen from cable exit)
Protection class IP54
Insulation class F
Impeller material Sheet aluminium
Acoustic 78 dB(A)
Controller Integrated (Cable line), 0~10V PWM
Housing Without housing; With inlet ring; With bracket; With panel;
