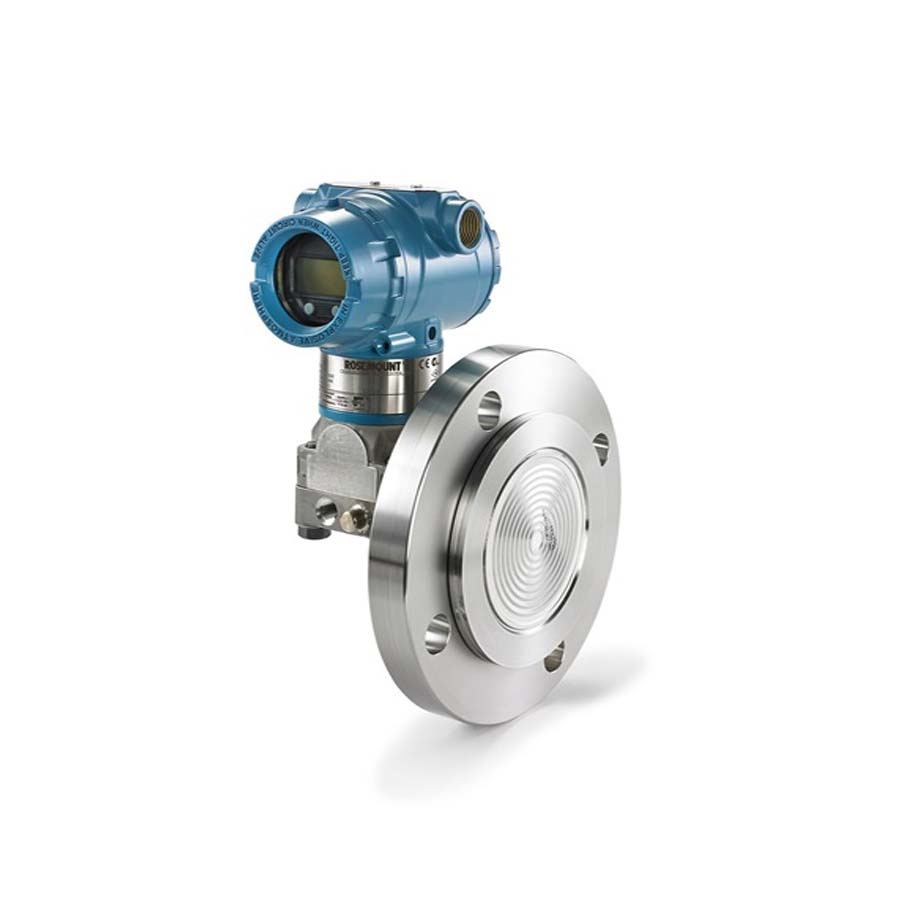

Level Transmitter(3051L3AB6UD21AAM5E5L4),rosemount

$1,331.10
$1,701.00
-$369.90
Quantity

Description

  • Estimated Lead Time : 6 - 8 weeks.
  • Manufacturer : Rosemount
  • Product No : 3051L3AB6UD21AAM5E5L4
  • Product Type : Level Transmitter
  • Model : 3051L = Level transmitter
  • Pressure range : 3 = –1000 to 1000 inH2O (–2.48 to 2.48 bar)
  • Transmitter output : A = 4–20 mA with digital signal based on HART® Protocol
  • Process connection size, material, extension length (high side) : B6 =
    • Process connection size : 4-in./DN 100

    • Material : 316L SST

    • Extension length : 6-in./150 mm

  • Mounting flange size, rating, material (high side) : U =
    • Size : DN 100

    • Rating : PN 40 per EN 1092-1

    • Material : 316 SST

  • Seal fill fluid : D = Silicone 200
    • Specific gravity : 0.93

    • Temperature limits (ambient temperature of 70° F [21° C]) : –49 to 401 °F (–45 to 205 °C)

  • Low pressure side : 21 =
    • Configuration : Differential

    • Flange adapter : SST

    • Diaphragm material : 316 SST

    • Sensor fluid : Silicone

  • O-ring : A = Glass-filled PTFE
  • Housing material : A =
    • Material : Aluminum

    • Conduit entry size : ½–14 NPT

  • Display and interface options : M5 = LCD display
  • Product certifications : E5 = USA Explosion-proof, Dust Ignition-Proof
  • Bolting material : L4 = Austenitic 316 SST bolts
  • Shipping Weight : 17 Kg
