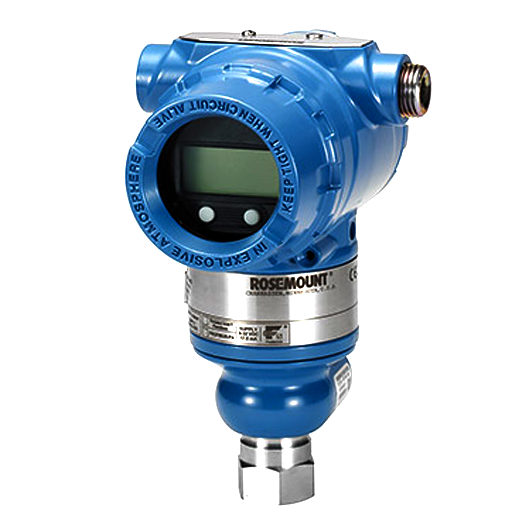

In-Line Pressure Transmitter(3051TG5A2B31BE5M5T1Q4Q8),Rosemount

$941.40
$1,203.00
-$261.60
Quantity

Description

  • Estimated Lead Time : Usually ships in 1-10 working days.

  • Manufacturer : Rosemount

  • Product No. : 3051TG5A2B31BE5M5T1Q4Q8

  • Product Type : In-line pressure transmitter

  • Pressure type : G = Gage

  • Gage (Rosemount 3051TG) : 5 = –14.7 to 10000 psi (–1,01 to 689,47 bar)

  • Transmitter output : A = 4–20 mA with digital signal based on HART® Protoco

  • Process connection style : 2B = ½–14 NPT female (range 1–5 only)

  • 3

    • Isolating diaphragm : Alloy C-276

    • Process connection wetted parts material : Alloy C-276

  • Sensor fill fluid : 1 = Silicone

  • B

    • Housing material : Aluminum

    • Conduit entry size : M20 x 1.5

  • Product certifications : E5 = FM Explosion-proof, Dust Ignition-proof

  • Display and interface options : M5 = LCD display

  • Transient terminal block : T1 = Transient protection terminal block

  • Calibration certification : Q4 = Calibration certificate

  • Material traceability certification : Q8 = Material traceability certification per EN 10204 3.1

  • Weight : 1.4 Kg + 0.2 Kg + 0.5Kg = 2.1 Kg

  • Shipping Weight : 8 Kg
