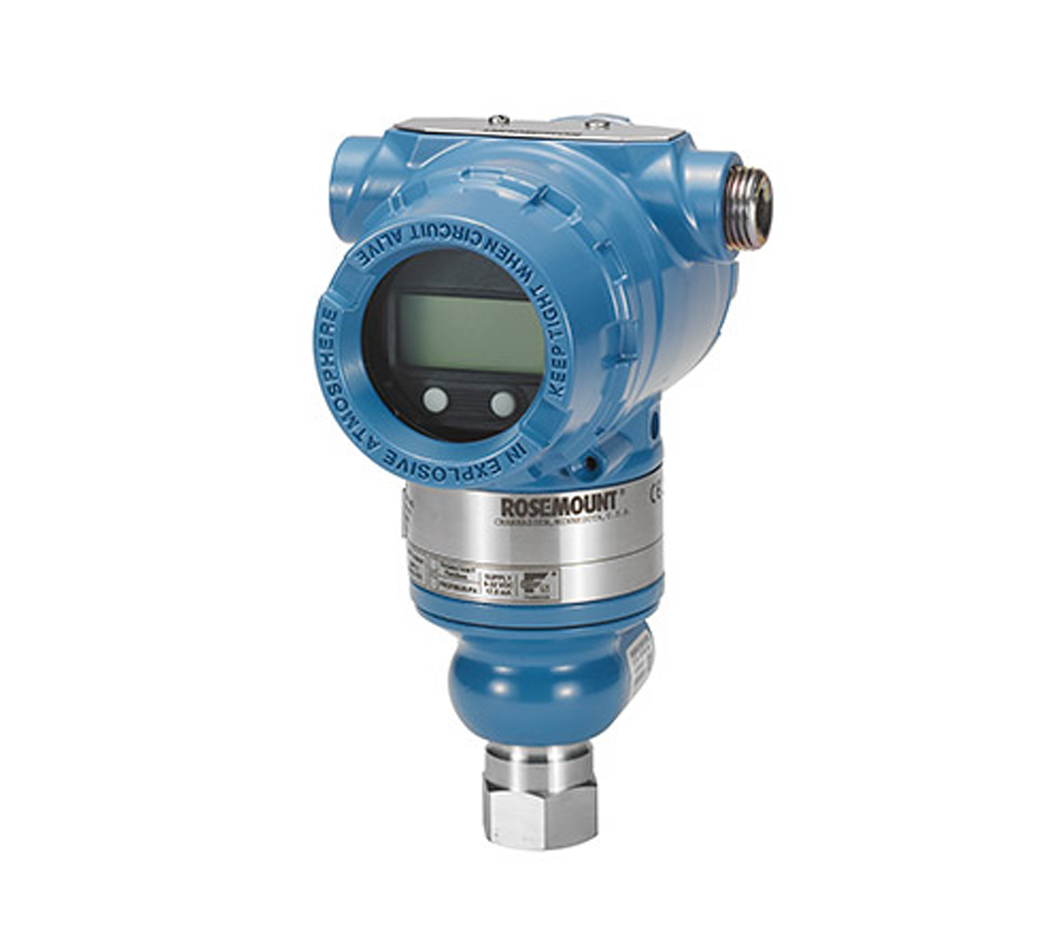

In-Line Pressure Transmitter(3051TG5A2B21AB4M5E8Q4DF),rosemount

$979.20
$1,252.00
-$272.80
Quantity

Description

  • Estimated Lead Time : 4 - 6 weeks.

  • Manufacturer : Rosemount

  • Product No. : 3051TG5A2B21AB4M5E8Q4DF

  • Product Type : In-Line Pressure Transmitter

  • Pressure type : G = Gage

  • Pressure range : 5 = –14.7 to 10000 psi (–1,01 to 689,47 bar)

  • Transmitter output : A = (4) 4–20 mA with digital signal based on HART® Protocol

  • Process connection style : 2B = ½–14 NPT female (range 1–5 only)

  • 2

    • Isolating diaphragm : 316L SST

    • Process connection wetted parts material : 316L SST

  • Sensor fill fluid : 1 = Silicone

  • A

    • Housing material : Aluminum

    • Conduit entry size : ½–14 NPT

  • Mounting bracket : B4 = Bracket for 2-in. pipe or panel mounting, all SST

  • Display and interface options : M5 = LCD display

  • Product certifications : E8 = ATEX Flameproof and Dust Certification

  • Calibration certification : Q4 = Calibration certificate

  • DF

  • Weight : 1.4 Kg + 0.5 Kg + 0.04 Kg = 1.94 Kg

  • Shipping Weight : 2.5 Kg
