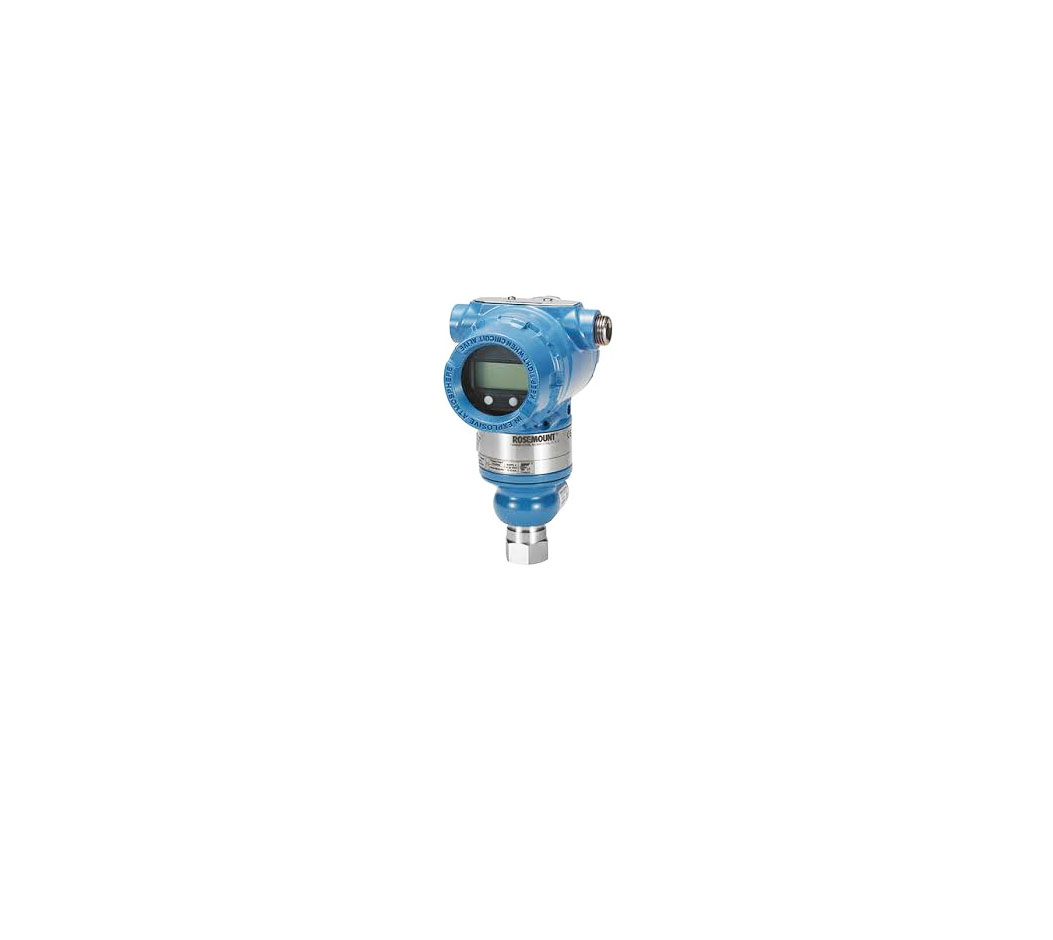

In-line Pressure Transmitter(3051TG2A2B21BK6M5T1Q4Q15),rosemount

$716.40
$916.00
-$199.60
Quantity

Description

  • Estimated Lead Time : 6 - 8 weeks.
  • Manufacturer : Rosemount
  • Product No. : 3051TG2A2B21BK6M5T1Q4Q15
  • Product type : In-line Pressure Transmitter
  • Pressure type : G = Gage
  • Pressure range : 2 = –14.7 to 800 psi (–1,01 to 55,15 bar)
  • Transmitter output : A = 4–20 mA with digital signal based on HART Protocol
  • Process connection style : 2B = 1/2–14 NPT female (range 1–5 only)
  • Isolating diaphragm,Process connection wetted parts material : 2 = 316L SST,316L SST
  • Sensor fill fluid : 1 = Silicone
  • Housing material,Conduit entry size : B = Aluminum,M20 x 1.5
  • Mounting bracket : B4 = Bracket for 2-in. pipe or panel mounting, all SST
  • Product certifications : K6 = CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6, E8, and I1)
  • Display and interface options : M5 = LCD display
  • Transient terminal block : T1 = Transient protection terminal block
  • Calibration certification : Q4 = Calibration certificate
  • Surface finish : Q16 = Surface finish certification for sanitary remote seals
  • Shipping weight : 7Kg
