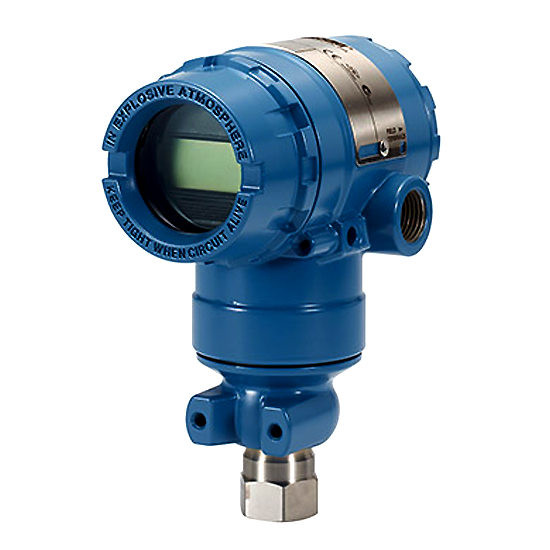

In-line Pressure Transmitter(2051TG1A2B21KB4E1M5D4P1Q4QTQ15),rosemount

$1,045.80
$1,336.00
-$290.20
Quantity

Description

  • Estimated Lead Time : 4 - 8 weeks.

  • Manufacturer : Rosemount

  • Product No. : 2051TG1A2B21KB4E1M5D4P1Q4QTQ15

  • Product Type : In-line Pressure Transmitter

  • Pressure type : G = Gage

  • Pressure range : 1 = -14.7 to 30 psi (–1,0 to 2,1 bar)

  • Transmitter output : A = 4–20 mA with Digital Signal Based on HART Protocol

  • Process connection style : 2B = 1/2–14 NPT female

  • 2

    • Isolating diaphragm : 316L SST

    • Process connection wetted parts material : 316L SST

  • Sensor fill fluid : 1 = Silicone

  • K

    • Housing material : SST

    • Conduit entry size : M20 x 1.5

  • Mounting bracket : B4 = Bracket for 2-in. pipe or panel mounting, All SST

  • Product certifications : E1 = ATEX Flameproof

  • Display and interface options : M5 = LCD display

  • Hardware adjustments : D4 = Zero and span configuration buttons

  • Pressure testing : P1 = Hydrostatic testing with certificate

  • Calibration certification : Q4 = Calibration certificate

  • Quality certification for safety : QT = Safety certified to IEC 61508 with certificate of FMEDA

  • NACE certificate : Q15 = Certificate of compliance to NACE MR0175/ISO 15156 for wetted materials

  • Weight : 1.4Kg + 1.8 Kg + 0.5 Kg = 3.7 Kg

  • Shipping Weight : 5 Kg
