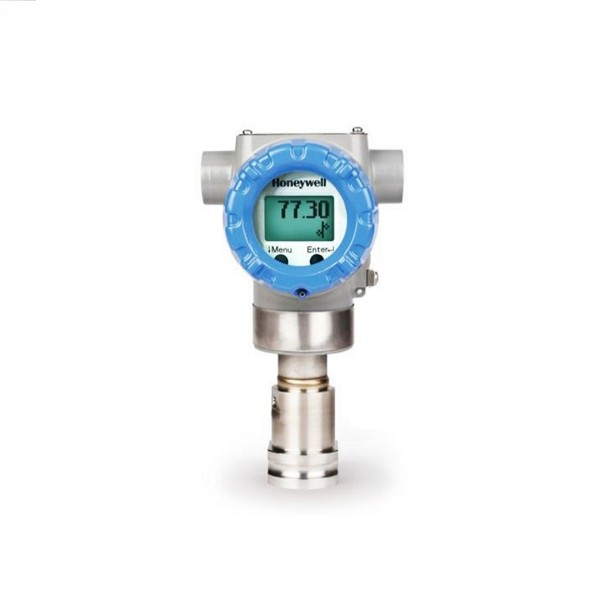

In-line Gauge Pressure Transmitters(STG77S-E1G000-1-A-CHS-11S-A-10A0-F1-0000),Honeywell

Estimated Lead Time : 1 - 2 weeks.

Manufacturer : Honeywell

Product No. : STG77S-E1G000-1-A-CHS-11S-A-00A0

Product type : In-line Gauge Pressure Transmitters

STG77S - Gauge In-Line

E - Process Head & Diaphragm Materials

Process Head/Reference Head Material : 316 Stainless Steel

Barrier Diaphragm Material : 306L ss

1 - Fill fluid : Silicone Oil 200

G - Process connection : 1/2" NPT (female)

0 - Bolt/Nuts Materials : none

0 - Vent/Drain Type/Location : none

0 - Gasket Material : None

1 -  Head/Connect Orientation : Standard High Side Left, Ref Side Right2 / Std Head Orientation

A - Approvals : Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof

C - Electronic Housing Material & Connection Type

Material : Polyester Powder Coated Aluminum

Connection : 1/2 NPT

H - Output/Protocol : Analog output 4-20mA dc,Digital protocol HART Protocol

Lighting protection : None

S - Customer Interface Selections : Standard(w/Internal Zero,Span&Config buttons) indicator, EN language

Application Software : 1 = Standard Diagnostics

Output Limit, Failsafe & Write Protect Settings : 1 = Disabled Write Protect, High> 21.0mAdc Fail Mode, Honeywell Std (3.8 - 20.8 mAdc) High & Low Output Limits

General Configuration : S = Factory Standard

A -  Accuracy and Calibration

Accuracy : Standard

Calibrated range : Factory Standard

Calibration Qty : Single Calibration

0 - Mounting bracket : None

0 - Customer tag : None

A0 - Unassembled Conduit Plugs & Adapters : No Conduit Plugs or Adapters Required

Shipping weight : 8 Kg
