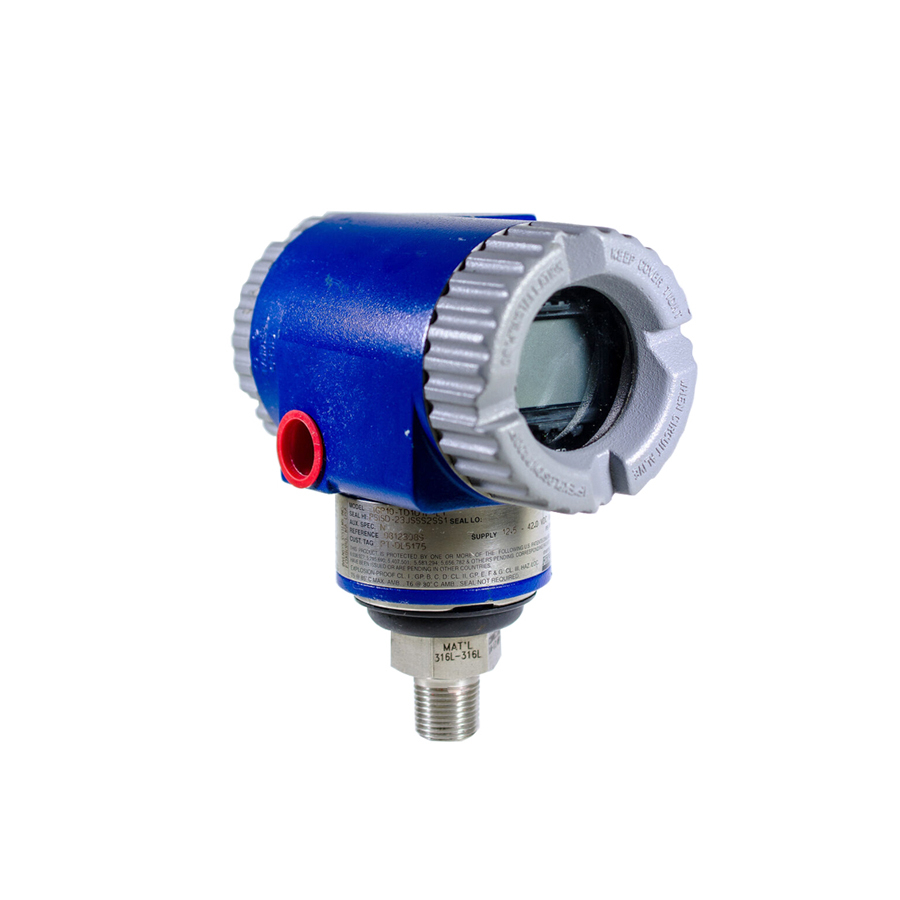

IGP10S Gauge Pressure Transmitters(IGP10S-T22E5AA-M5L1V3T),foxboroBySE

$1,537.20
$1,964.20
-$427.00
Quantity
Sku : IGP10S-T22E5AA-M5L1V3T
Weight : 1.5kg

Description

  • Estimated Lead Time : 6 - 8 weeks.
  • Foxboro ( by Schneider Electric )
  • Product No. : IGP10S-T22E5AA-M5L1V3T
  • Product type : IGP10S Gauge Pressure Transmitters
  • IGP10S : Intelligent Electronic Direct Connected Intelligent Gauge Pressure Transmitter
  • Electronics Versions and Output Signal : T = Digital HART and 4 to 20 mA dc
  • Structure Code - Transmitter Only (no seals) : 22 = 316L ss Process Connection, 316L ss Sensor, Silicone Sensor Fill Fluid, 1/2 NPT External Thread, 1/4 NPT Internal Thread Connection Type.
  • Span Limits - Absolute or Gauge Pressure Units, as Applicable : E = 5 and 2000 psi, 0.034 and 13.8 MPa, 0.34 and 138 bar.
  • Conduit Connection and Housing Material : 5 = M20 Conduit Connection, Both Sides, Aluminum Housing
  • Electrical Safety : AA = ATEX intrinsically safe, Ex ia IIC
  • Mounting Bracket Sets : M5 = Painted Steel Bracket with Plated Steel Bolts, M20 (with Conduit Connection Codes 5 and 6 only)
  • Digital Indicator with Pushbuttons : L1 = Digital Indicator, Pushbuttons, and Window Cover
  • Vent Screw and Block & Bleed Valve : V3 = Block and Bleed Valve, 316 ss (Not with Pressure Seals)
  • Miscellaneous Optional Selections : T = Supplemental Customer Tag (Stainless Steel Tag wired onto Transmitter)
  • Dimensions (HxWxD), approx : 8.89cm x 11.7cm x 24.1cm
  • Weight : 1.5 Kg
  • Shipping Weight : 3 Kg
